¥110000

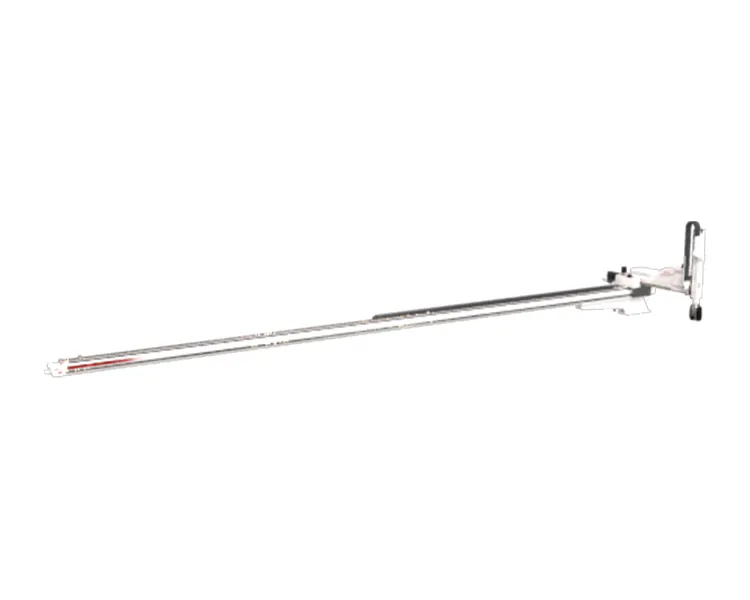

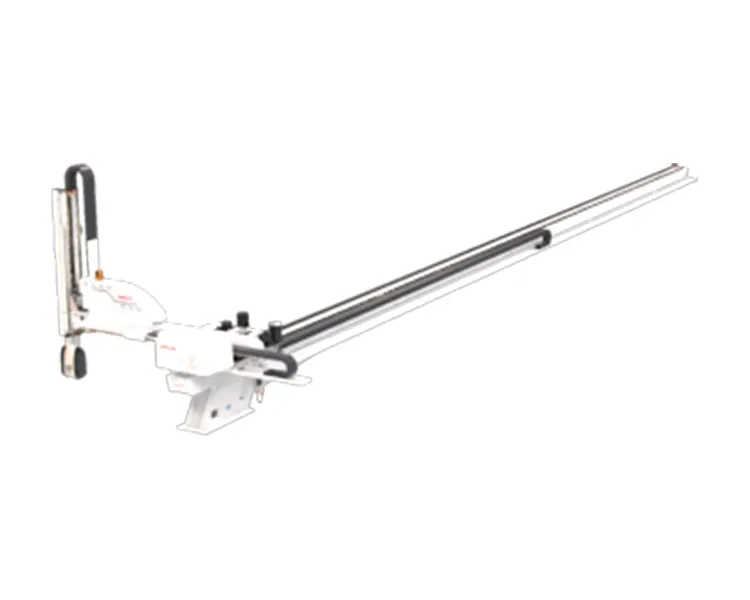

BRTV17WSS5PC series applies to all types of horizontal injection machine ranges of 600T-1300T for take-out products and sprue.
Recommended I.M.M (ton): 600T-1300T
Vertical Stroke (mm): 1700
Traverse Stroke (mm): Horizontal arch with a total length of less than 12 meters
Max loading (kg): 20
Weight (kg): Non-standard
BRTV17WSS5PC series applies to all types of horizontal injection machine ranges of 600T-1300T for take-out products and sprue. The installation is different from traditional beam robots, products are placed at the end of injection molding machines, which can save installation space for the ejection machine. Arm form: telescopic type and single arm, five axis AC servo drive, with AC servo drive axis, A axis rotation angle of 360°, C axis rotation angle of 180°, can freely position and adjust fixture angle, long service life, high accuracy, low failure rate, simple maintenance, mainly used for quick removal or complex angle removal applications, especially for long shaped products such as automotive products, washing machines and household appliances. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.
| Power Source(kVA) | Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 4.23 | 600T-1300T | AC Servo motor | Four suctions Twe fixtures |
| Traverser Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| Horizontal arch with a total length of less than 12 meters | ±200 | 1700 | 20 |
| Dry Take Out Time (sec) | Dry Cycle Time (sec) | Air Consumption (NI/cycle) | Weight(kg) |
| 5.21 | Pending | 15 | Non-standard |
| Repeatability(mm) | |||
| ±0.05 |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
If you are interested in buying the robots or inquiring about the robot applications, or you want to cooperate with BORUNTE,feel free to contact us. We will provide the best solution for your needs.
