Product Introduction

BRTV13WDS5P0/F0 series applies to all types of horizontal injection machine ranges of 320T-700T for take-out products and sprue. The installation is different from traditional beam robots, products are placed at the end of injection molding machines. It has a double arm. The vertical arm is a telescopic stage and the vertical stroke is 1300mm. Five-axis AC servo drive. After installation, the installation space of the ejector can be saved by 30-40%, and the plant can be used more fully allowing better utilization of production space, productivity will be increased by 20-30%, reduce the defective rate, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

Basic Parameters

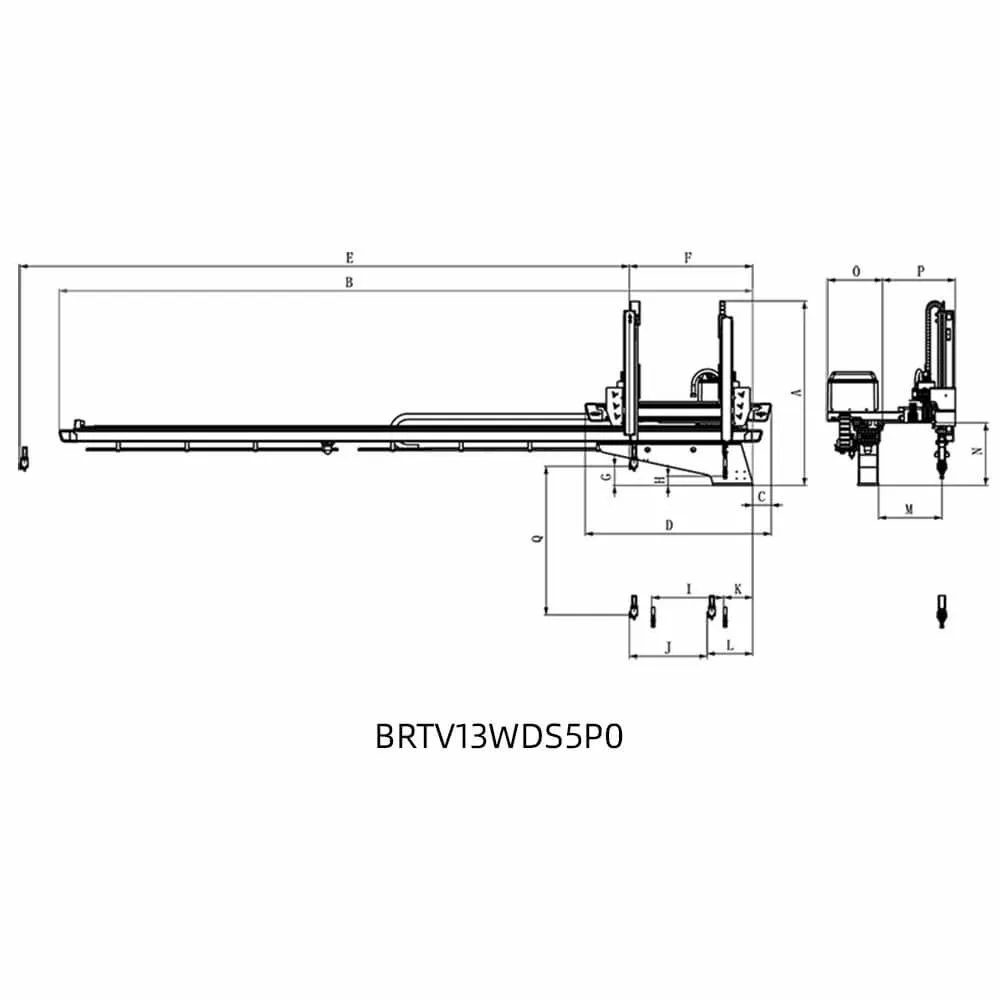

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
