¥52766
BRTIRUS1510A has six degrees of flexibility. Suitable for painting, welding, injection molding, stamping, forging, handling, loading, assembling, etc.
Arm Length (mm): 1500
Repeatability (mm): ±0.05
Loading Ability (kg): 10
Power Source (kVA): 5.06

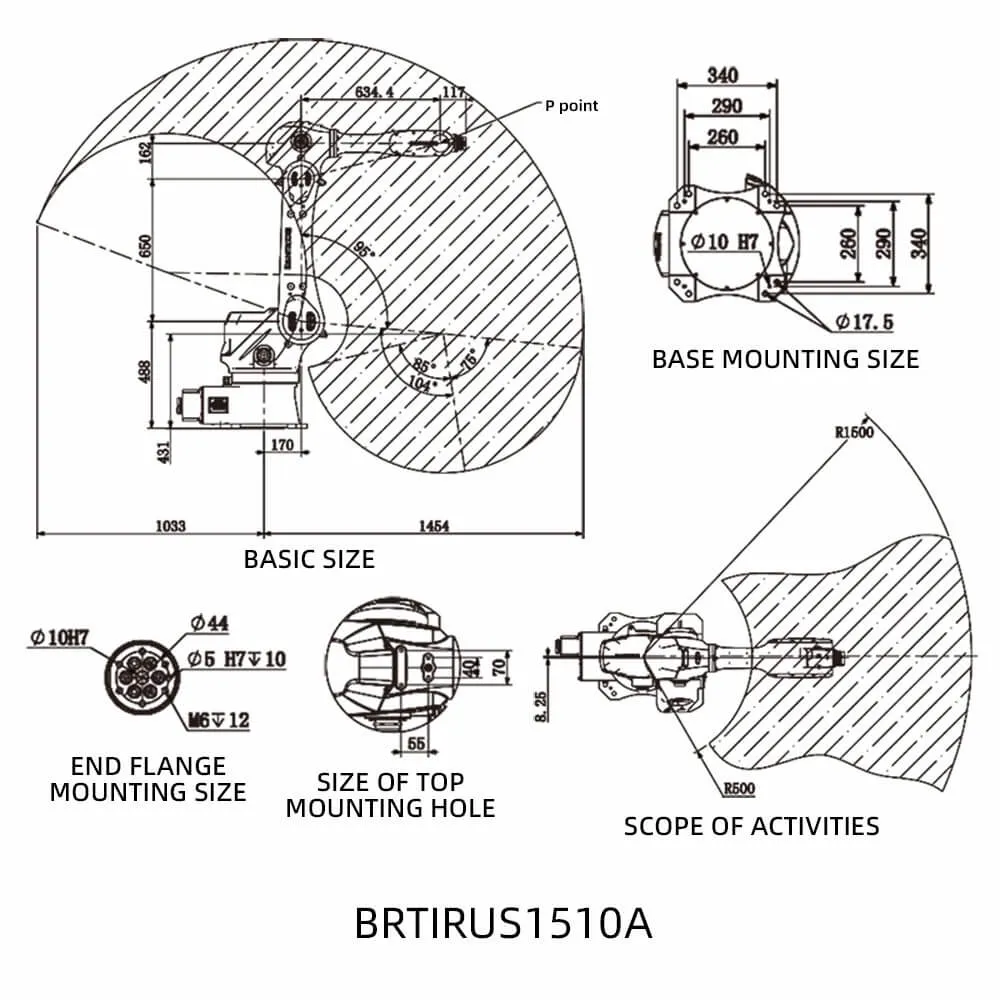

BRTIRUS1510A is a six-axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. The maximum load is 10kg, the maximum arm length is 1500mm. Light weight arm design, compact and simple mechanical structure, in the state of high speed movement, can be carried out in a small workspace flexible work, meet the needs of flexible production. It has six degrees of flexibility. Suitable for painting, welding, injection molding, stamping, forging, handling, loading, assembling, etc. It adopts HC control system, suitable for injection molding machine range from 200T-600T. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
| Item | Range | Max.speed | |
| Arm | J1 | ±165° | 190°/s |
| J2 | -95°/+70° | 173°/s | |
| J3 | -85°/+75° | 223°/S | |
| Wrist | J4 | ±180° | 250°/s |
| J5 | ±115° | 270°/s | |
| J6 | ±360° | 336°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.

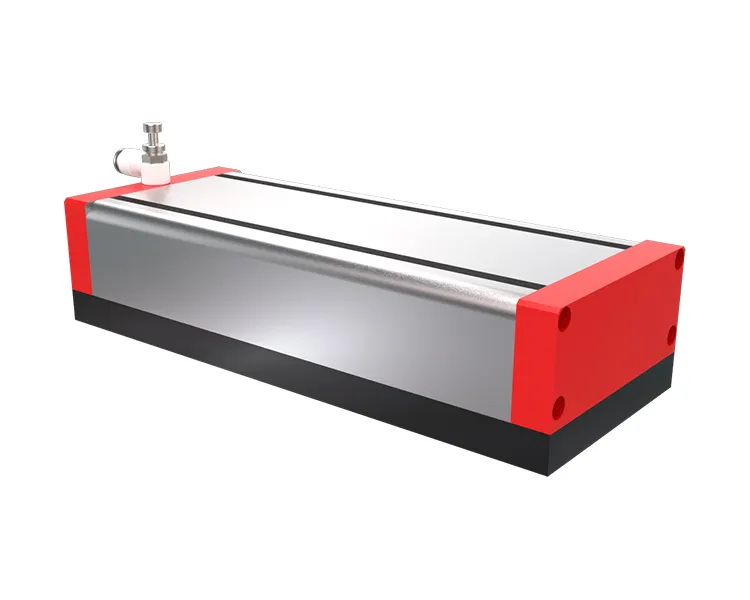

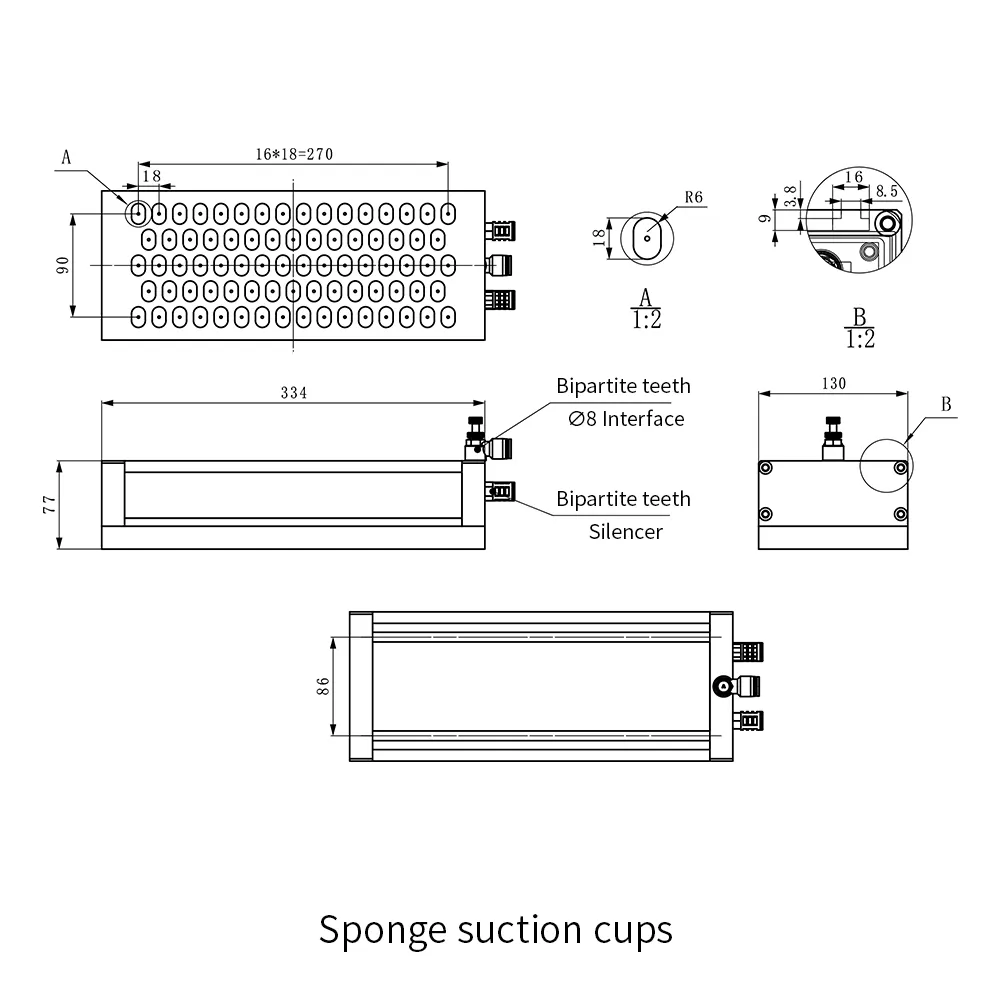

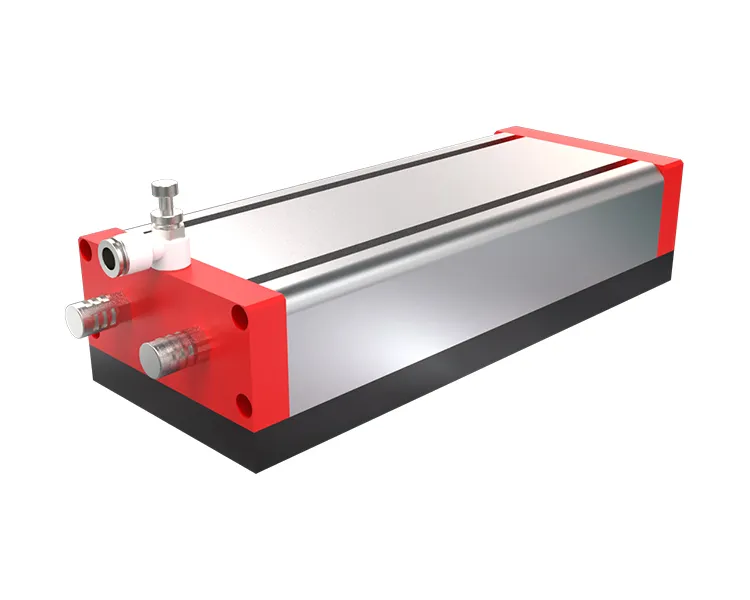

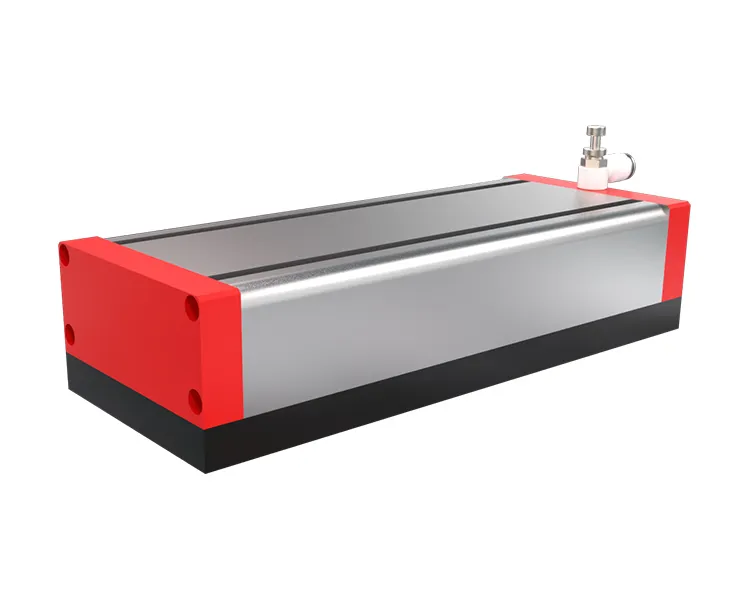

BORUNTE sponge suction cups can be usedforloading and unloading, handling, unpacking,and stacking products.Applicable itemsinclude various types of boards, wood, cardboard boxes, etc.Built in vacuum generatorthe suction cup body has a steel ball structureinside,which can generate suction withoutfully adsorbing the product. lt can be directlyused with an external air pipe.
| Items | Parameters | Items | Parameters |
| Applcable items | Warious types of boards,wood,cardboard boxes, etc | Air consumption | 270NL/min |
| Theoretical maximum suction | 25KG | Weight | ≈3KG |
| Body size | 334mm*130mm*77mm | Maximum vacuum degree | ≤-90kPa |
| Gas supply pipe | ∅8 | Suction type | Check valve |
