Introduction to Robot Products

BRTIRUS0805A type robot is a six-axis robot developed by BORUNTE. The whole operation system is simple, compact structure, high position accuracy and has good dynamic performance. The load ability is 5kg, especially suitable for injection molding, taking, stamping, handling, loading and unloading, assembly, etc. It is suitable for injection molding machine range from 30T-250T. The protection grade reaches IP54 at wrist and IP40 at body. The repeat positioning accuracy is ±0.05mm.

Basic parameters of robot

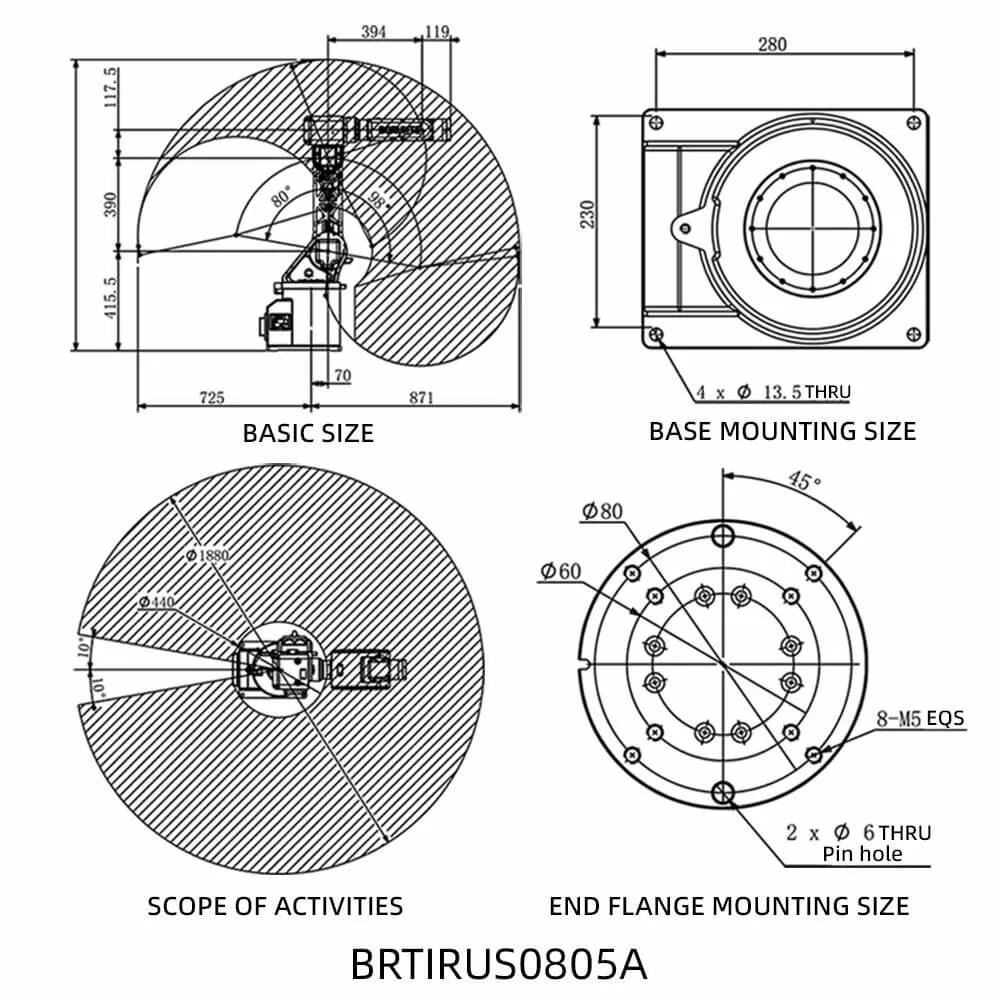

Robot trajectory diagram

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.

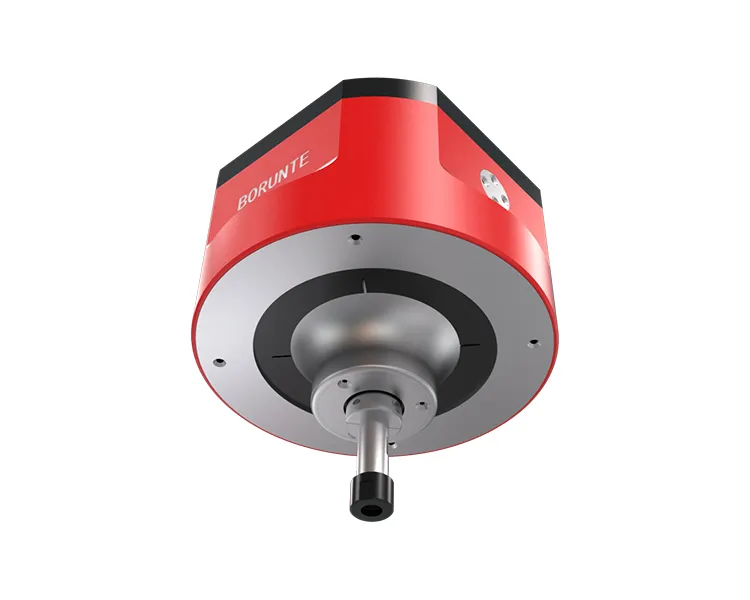

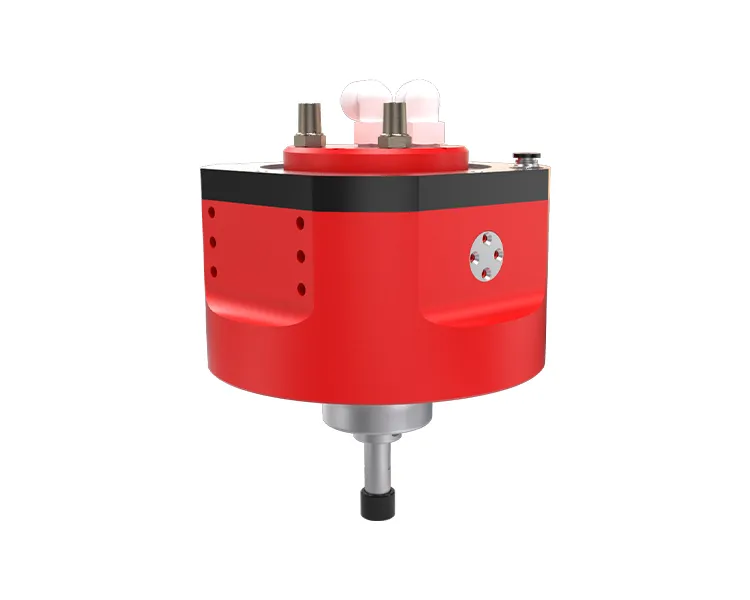

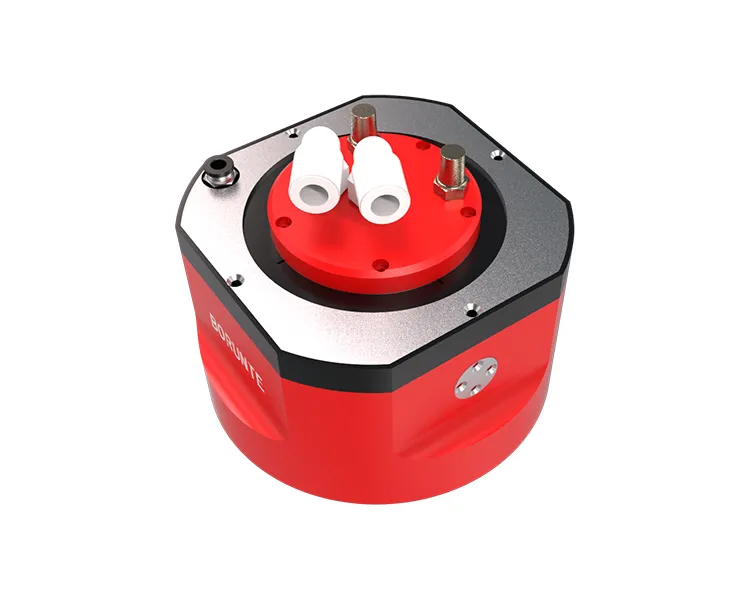

Introduction to Tool Products

BORUNTE pneumatic floating pneumatic spindleis designed to remove small contour burrs and moldgaps.lt uses gas pressure to adjust the lateral swingforce of the spindle, making the radial output forceof the spindle. By adjusting the radial force throughan electrical proportional valve and adjusting thecorresponding spindle speed through pressure regulation, the goal of high-speed polishing is achieved.Generally,it needs to be used in coniunction withelectrical proportional valves.It can be used to remove fine burrs on iniectionmolding,aluminum iron alloy parts, small moldseams, and edges

Basic parameters of Tool

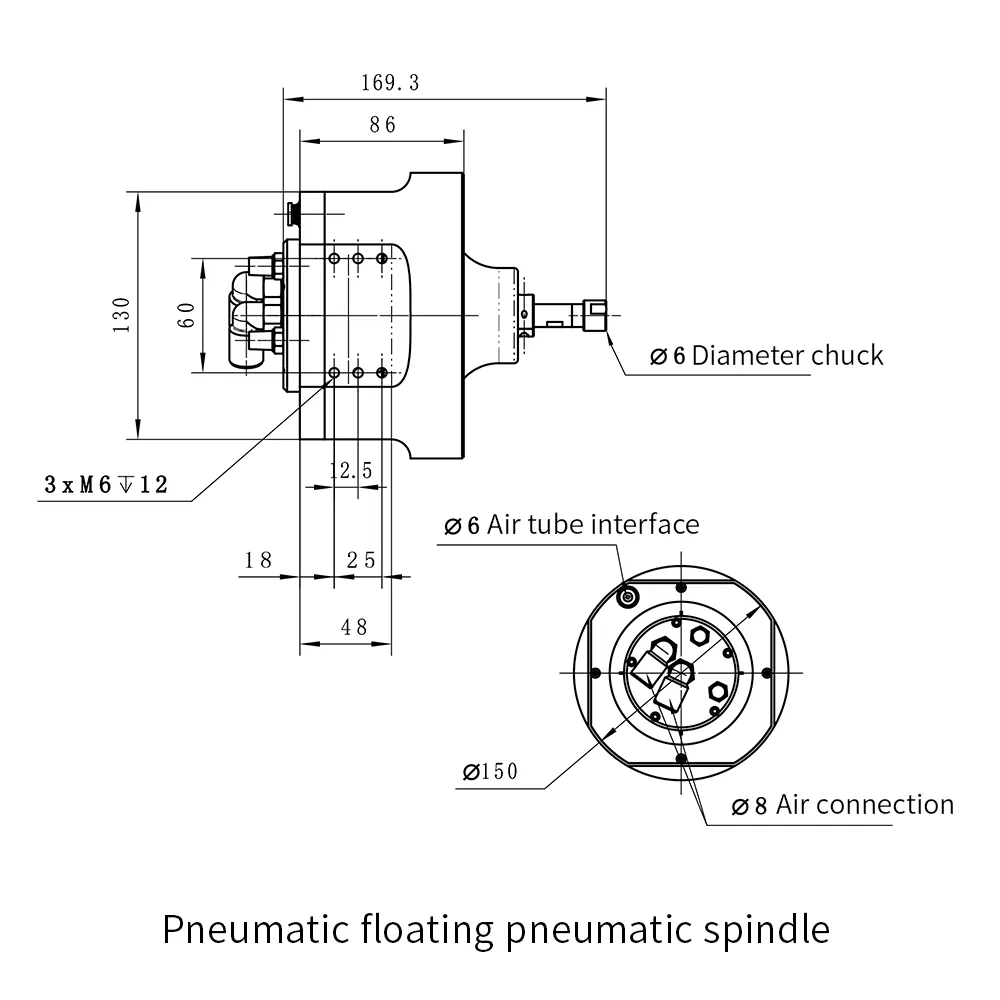

Tool trajectory diagram
