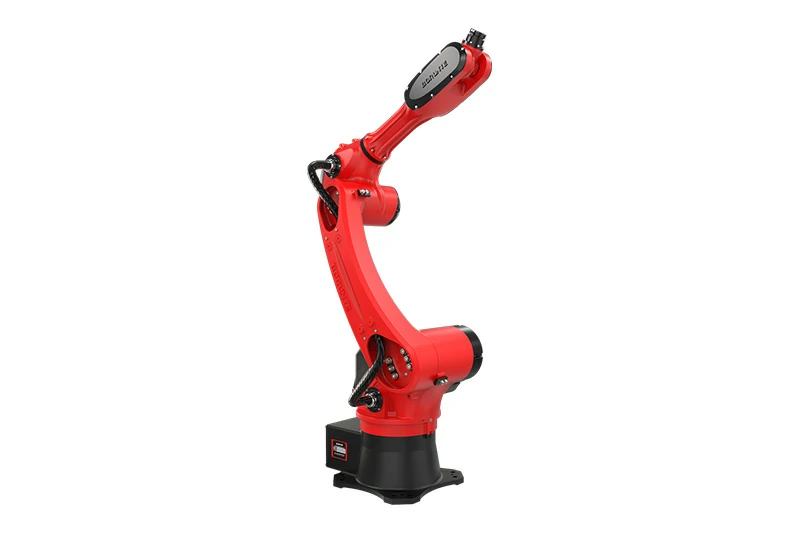

BRTIRUS0707A type robot is a six-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 700mm. The maximum load is 7kg. It’s flexible with multiple degrees of freedom. Suitable for polishing, assembling, painting, etc. The protection grade reaches IP65.Dust-proof and water-proof. The repeat positioning accuracy is ±0.03mm.

MainSpecification:

Arm Length(mm)：700

Repeatability(mm)：±0.03

Loading Ability(kg)：7

Power Source(kVA)：2.93

Weight(kg)：Approx.55

Tool Detail:

BORUNTE pneumatic floating electric spindle isdesigned to remove irregular contour burrs and noz-zles.lt uses gas pressure to adjust the lateral swingforce of the spindle,so that the radial output force ofthe spindle can be adjusted through an electricalproportional valve, and the spindle speed can beadjusted by a frequency converter. Generally, itneeds to be used in conjunction with electrical pro-portional valves. It can be used to remove die cast and recast alumi-num iron alloy parts, mold joints, nozzles, edgeburrs, etc.

MainSpecification:
