Introduction to Robot Products

BRTIRSC0603A type robot is a four-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations.The maximum arm length is 600mm. The maximum load is 3kg.It’s flexible with multiple degrees of freedom. Suitable for printing and packaging, metal processing, textile home furnishing, electronic equipment, and other fields. The protection grade reaches IP40. The repeat positioning accuracy is ±0.02mm.

Basic parameters of robot

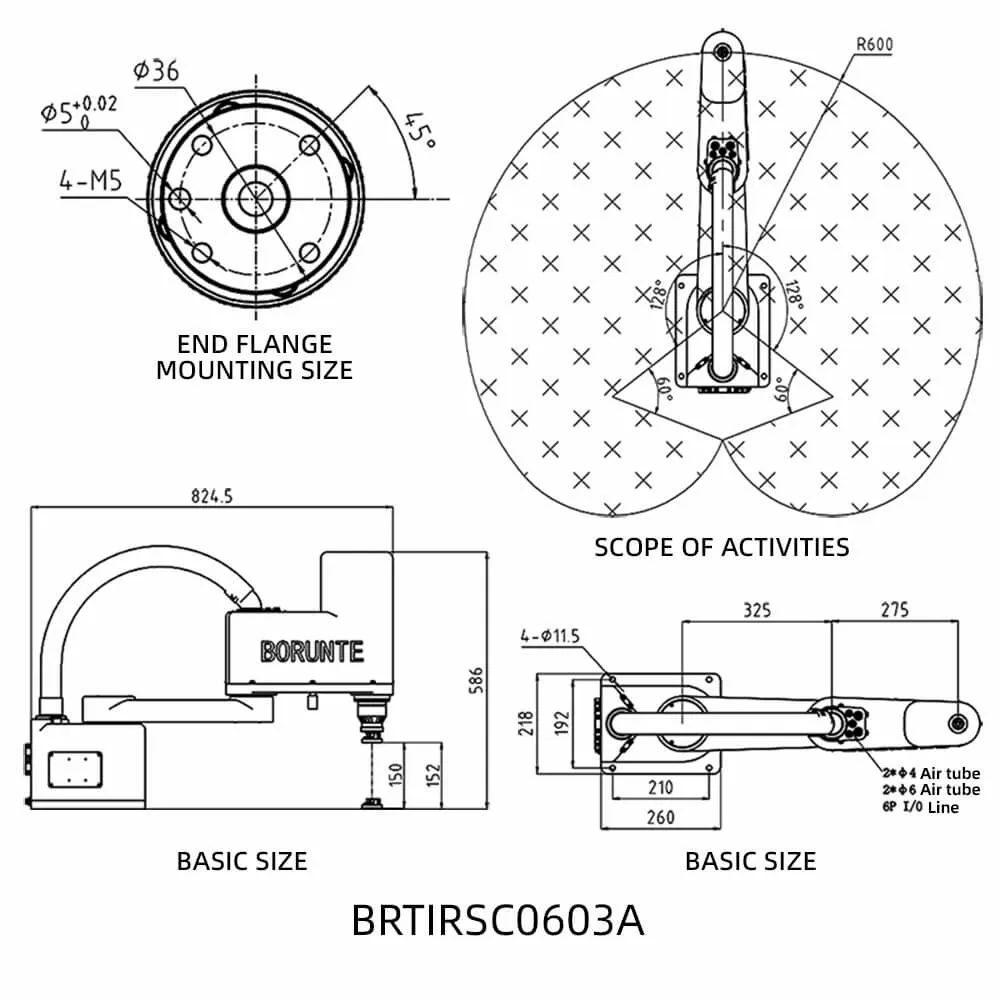

Robot trajectory diagram

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.

Introduction to Tool Products

BORUNTE 2D visual system can be appliedto applications such as grabbing, packing, andplacing products in an disorderly manner onan assembly line.lt has the characteristics offast speed and large scale, which can effectively solve the problems of high error rate andhigh labor intensity in traditional manual sorting and grasping. The Vision BRT visual software includes 13 algorithm tools, adopts avisualinterface and graphical interaction. makingit simple, stable, compatible, easy todeploy and use.

Basic parameters of Tool

Tool trajectory diagram
