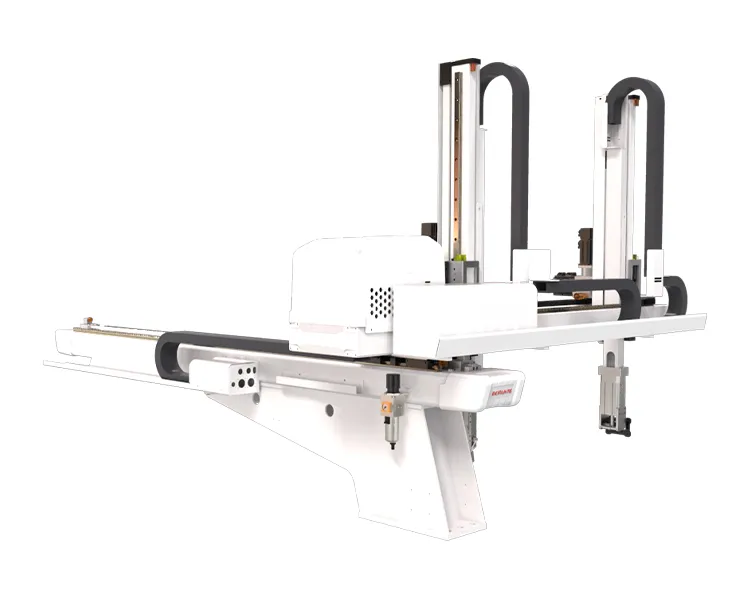

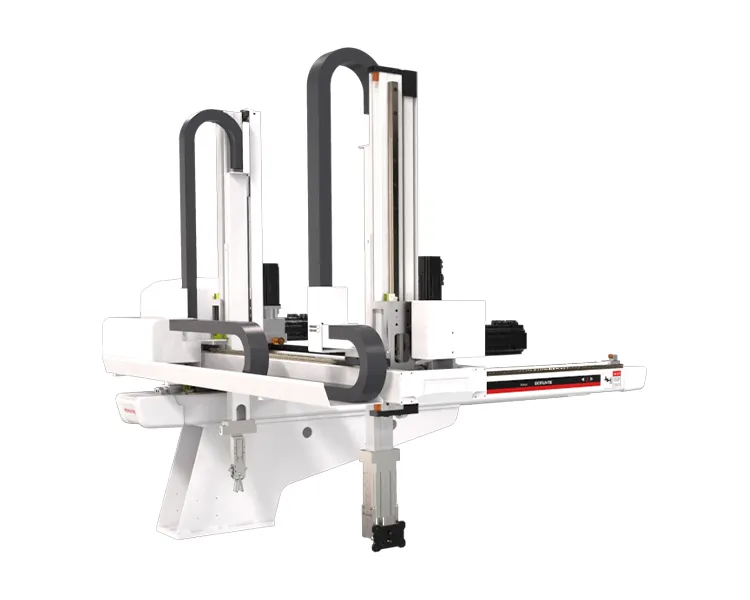

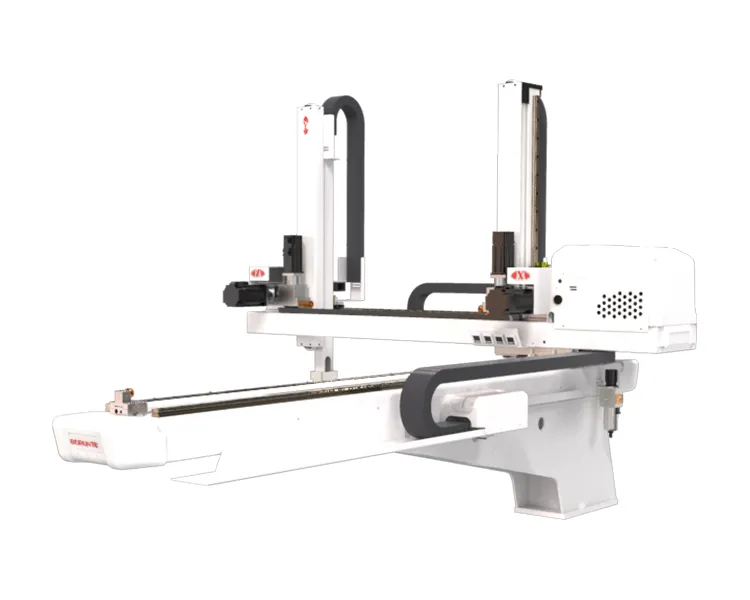

Product Introduction

BRTR11WDS5PC/FC series is suitable for 320T-470T horizontal injection molding machine to take out the finished product and nozzle, arm form telescopic type, two-arm, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications, accurate positioning, high speed, long life, low failure, installation manipulator can increase production capacity (10-30%), reduce the defective rate of products, ensure the safety of operators, and reduce manual labor. Accurately control production, reduce waste and ensure delivery. The integrated control system of five-axis drive and control: less signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high repetitive positioning accuracy, multi-axis can be controlled at the same time, simple equipment maintenance and low failure rate.

Basic Parameters

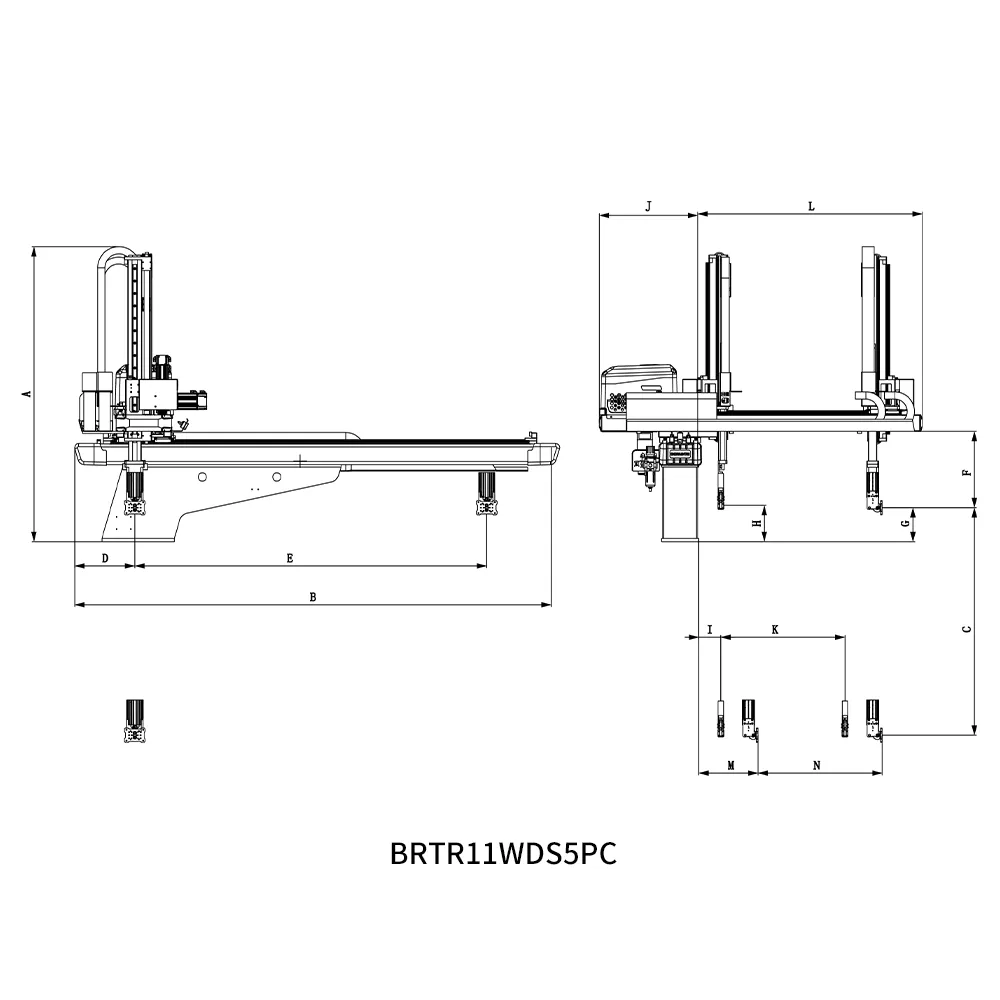

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
