Product Introduction

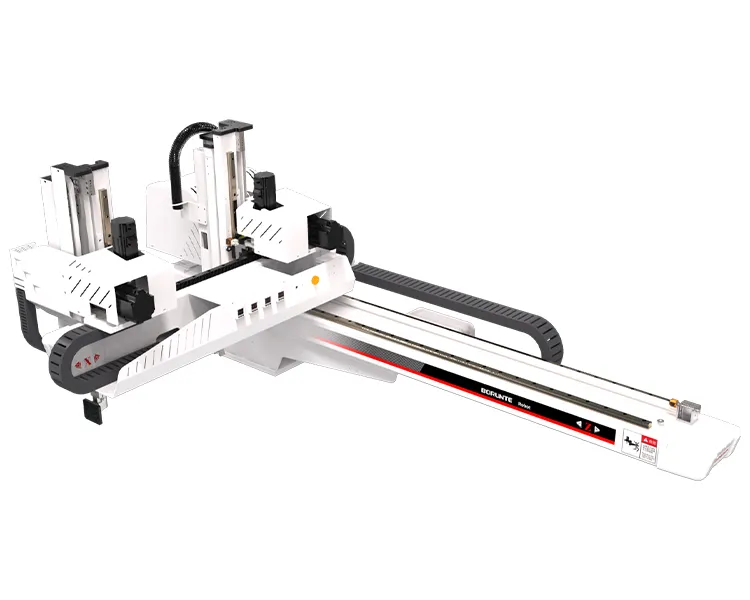

BRTR08TDS5PC/FC series is suitable for 50T-230T horizontal injection molding machine to take out the finished product and nozzle, arm form ternary type, two-arm, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications. Accurate positioning, high speed, long life, and low failure rate. After installing the manipulator can increase production capacity (10-30%) and will reduce the defective rate of products, ensure the safety of operators, and reduce manpower. Accurately control production, reduce waste and ensure delivery. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, multi-axis can be controlled at the same time, simple equipment maintenance, and low failure rate.

Basic Parameters

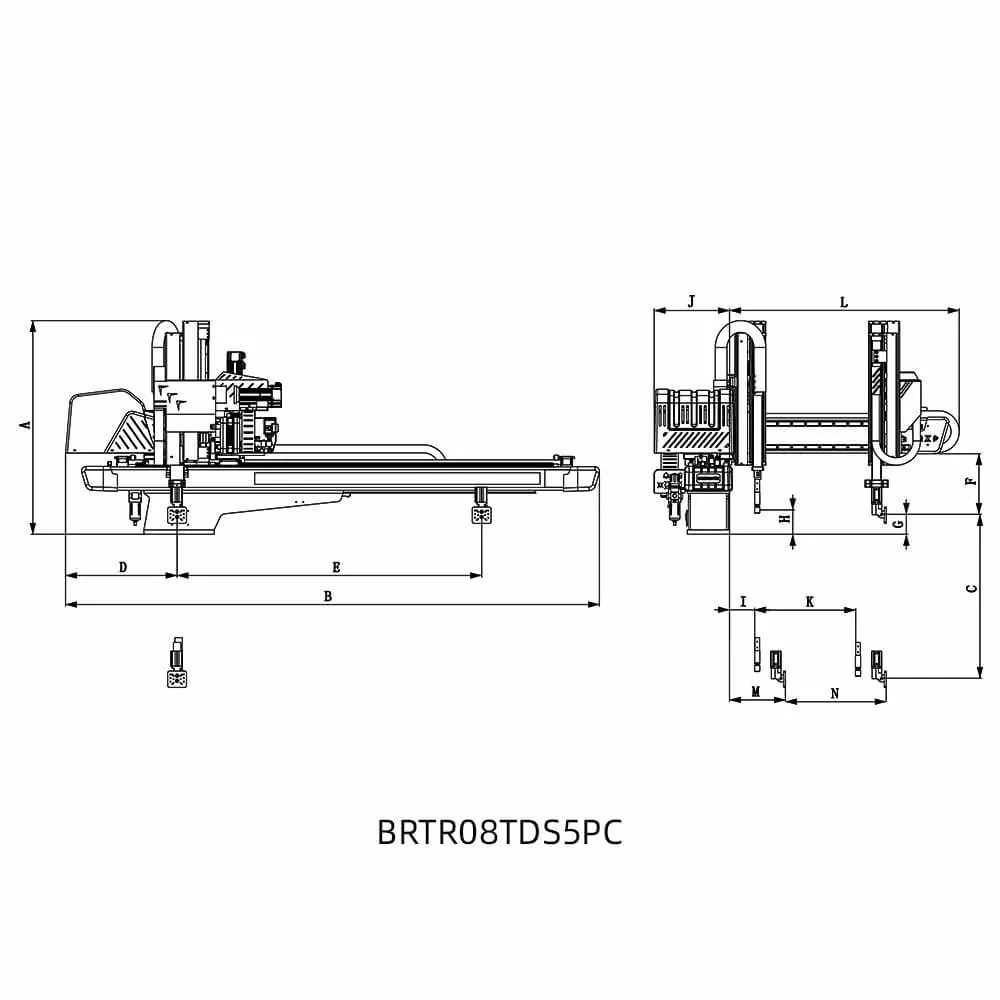

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
