¥42766
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

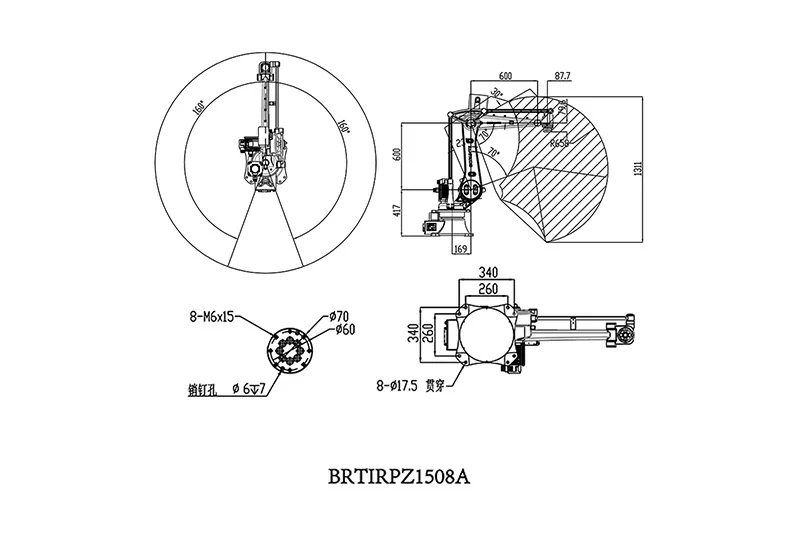

BRTIRPZ1508A type robot is a four-axis robot developed by BORUNTE,it applies full servo motor drive with fast response and high position accuracy. The maximum load is 8kg, the maximum arm length is 1500mm. Compact structure achieves a wide range of movements, flexible sports, precise.Suitable for dangerous and harsh environments, such as stamping, pressure casting, heat treatment, painting, plastic molding, machining and simple assembly processes. And in the atomic energy industry, completing the handling of hazardous materials and others. It is suitable for punching. The protection grade reaches IP40. The repeat positioning accuracy is ±0.05mm.
MainSpecification:
Arm Length(mm)：1500
Repeatability(mm)：±0.05
Loading Ability(kg)：8
Power Source(kVA)：3.18
Weight(kg)：Approx. 150
|
Item |
Range | Max.speed | |
| Arm |
J1 |
±160° |
219.8°/S |
|
J2 |
-70°/+23° | 222.2°/S | |
| J3 | -70°/+30° |
272.7°/S |
|
|
Wrist |
J4 |
±360° | 412.5°/S |
| R34 | 60°-165° |
/ |
|
Tool Detail:
BORUNTE sponge suction cups can be usedforloading and unloading, handling, unpacking,and stacking products.Applicable itemsinclude various types of boards, wood, cardboard boxes, etc.Built in vacuum generatorthe suction cup body has a steel ball structureinside,which can generate suction withoutfully adsorbing the product. lt can be directlyused with an external air pipe.
MainSpecification:
|
Items |
Parameters | Items | Parameters |
| Applcable items | Warious types of boards,wood,cardboard boxes, etc | Air consumption |
270NL/min |
|
Theoretical maximum suction |
25KG | Weight | ≈3KG |
| Body size | 334mm*130mm*77mm | Maximum vacuum degree |
≤-90kPa |
|
Gas supply pipe |
∅8 | Suction type | Check valve |
