¥10000

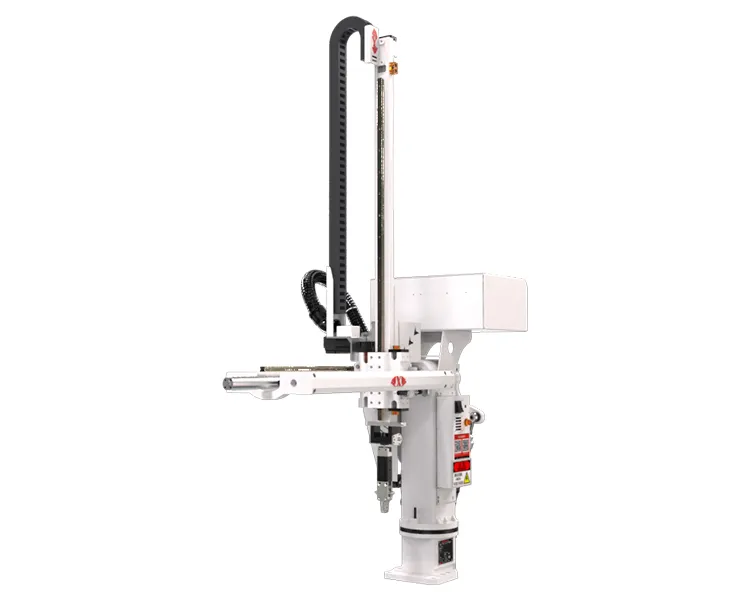

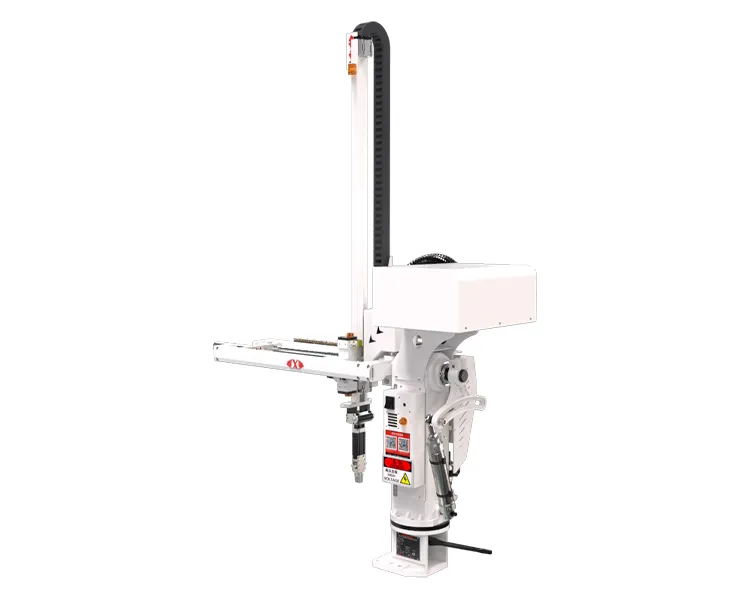

BRTP07ISS1PC series applies to all types of horizontal injection machines of 60T-200T for take-out products. The up and down arm is a single sectional type.
Recommended I.M.M (ton): 60T-200T
Vertical Stroke (mm): 750
Traverse Stroke (mm): /
Max loading (kg): 2
Weight (kg): 50
BRTP07ISS1PC series applies to all types of horizontal injection machines of 60T-200T for take-out products. The up and down arm is a single sectional type. The up and down action is driven by AC servo motor, with accurate positioning, fast speed, long service life, and low failure rate. The rest parts are driven by air pressure. It is economical and affordable. After installing this robot, productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste.
| Power Source(kVA) | Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 1.27 | 60T-200T | AC Servo motor、Cylinder | zero suctions zero fixtures |
| Traverser Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| / | 115 | 750 | 2 |
| Dry Take Out Time (sec) | Dry Cycle Time (sec) | Swing Angle (degree) | Air Consumption (NI/cycle) |
| 1.4 | 5 | / | 3 |
| Weight(kg) | Repeatability(mm) | ||
| 50 | ±0.05 |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
