¥10000

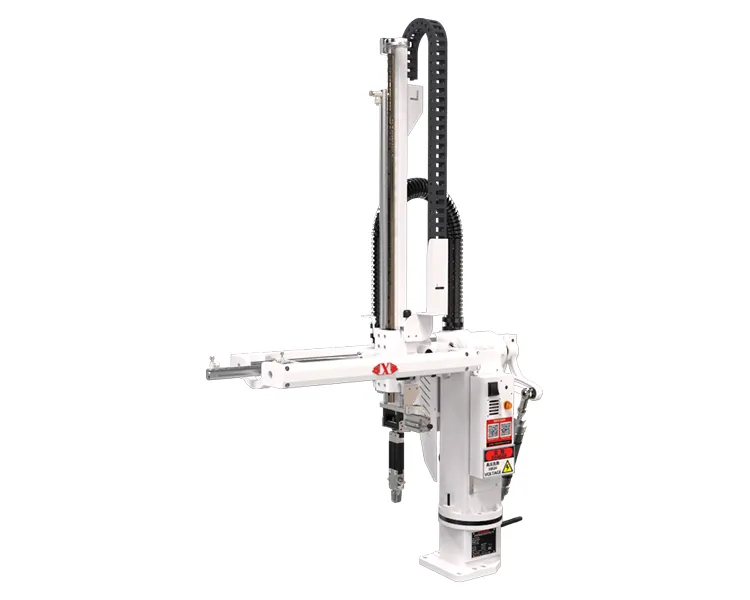

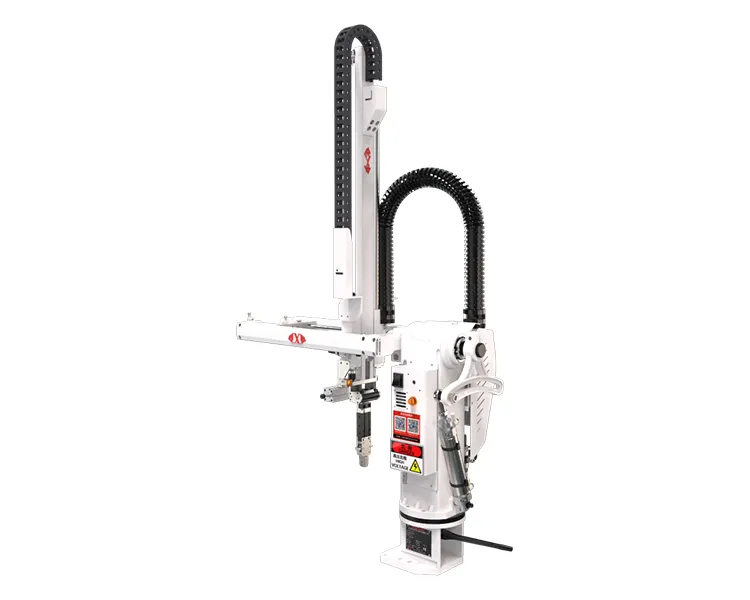

BRTP06ISS0PC is telescopic type, with a product arm and runner’s arm, for two plate or three plate mold products take out. The traverse axis is driven by an AC servo motor.
Recommended I.M.M (ton): 30T-150T
Vertical Stroke (mm): 650
Traverse Stroke (mm): /
Max loading (kg): 2
Weight (kg): 36
BRTP06ISS0PC series applies to all types of horizontal injection machines of 30T-150T for take-out products. The up and down arm is a single/double sectional type. The up and down action, drawing part, screwing out, and screwing in of them is driven by air pressure, with high speed and high efficiency. After installing this robot, productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste.
| Power Source(kVA) | Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 0.05 | 30T-150T | Cylinder drive | zero suctions zero fixtures |
| Traverser Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| / | 120 | 650 | 2 |
| Dry Take Out Time (sec) | Dry Cycle Time (sec) | Swing Angle (degree) | Air Consumption (NI/cycle) |
| 1.6 | 5.5 | 30-90 | 3 |
| Weight(kg) | Repeatability(mm) | ||
| 36 | ±0.05 |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
