Product Introduction

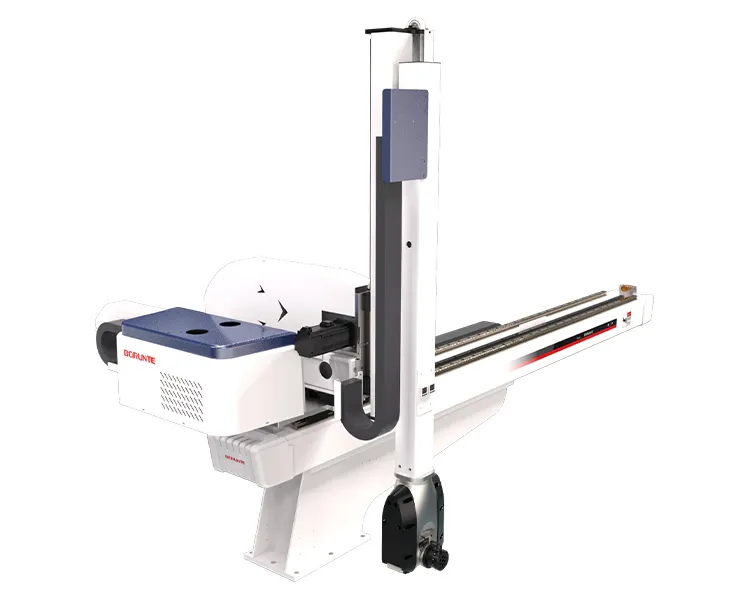

BRTNN15WSS5P series is suitable for 470T-800T plastic injection molding machine, five-axis AC servo drive, standard AC servo drive shaft, the rotation angle of the A-axis:360° , and the rotation angle of the C-axis:180° , which can locate and adjust the fixture angle freely, it has a long life, high accuracy, low failure rate, simple maintenance, mainly for rapid removal or complex angle removal applications, especially long shaped products such as automotive products, washing machine.

Basic Parameters

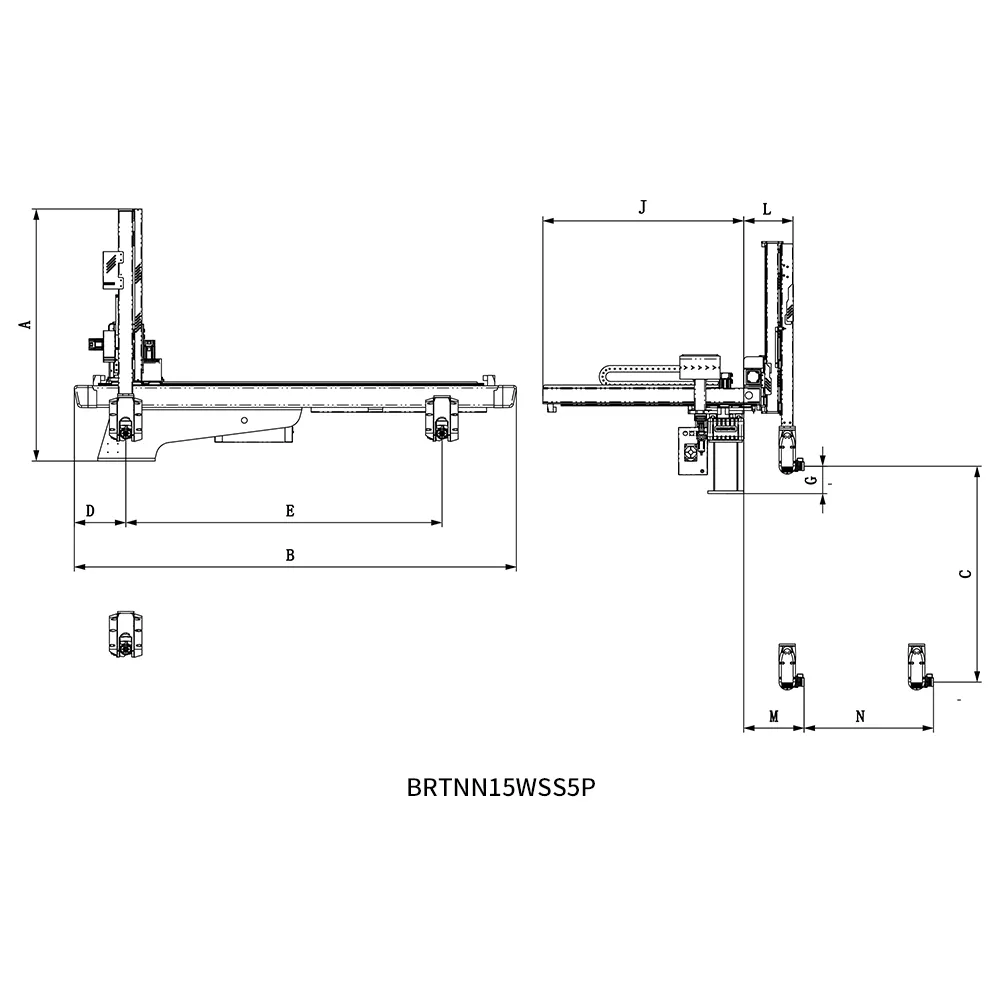

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
