¥110000

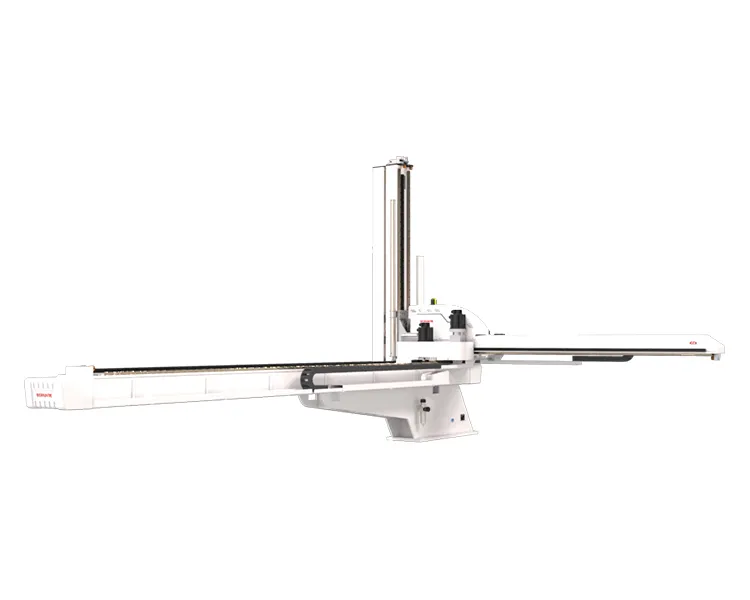

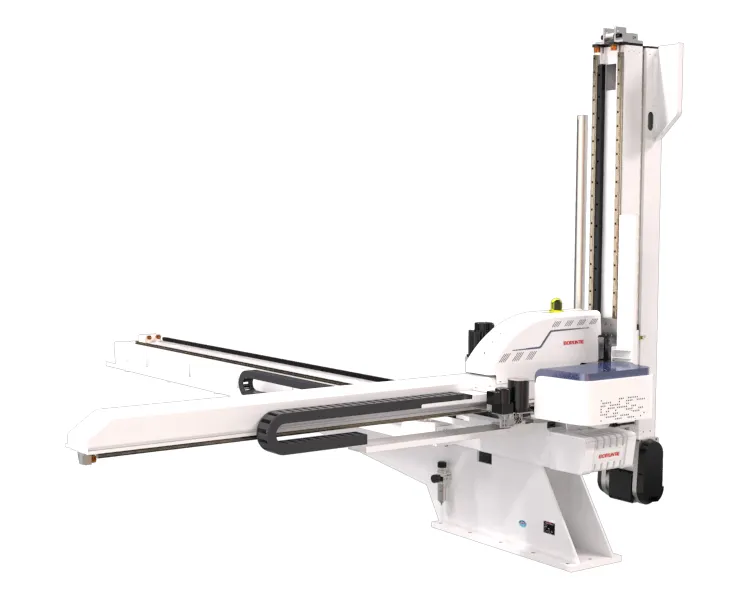

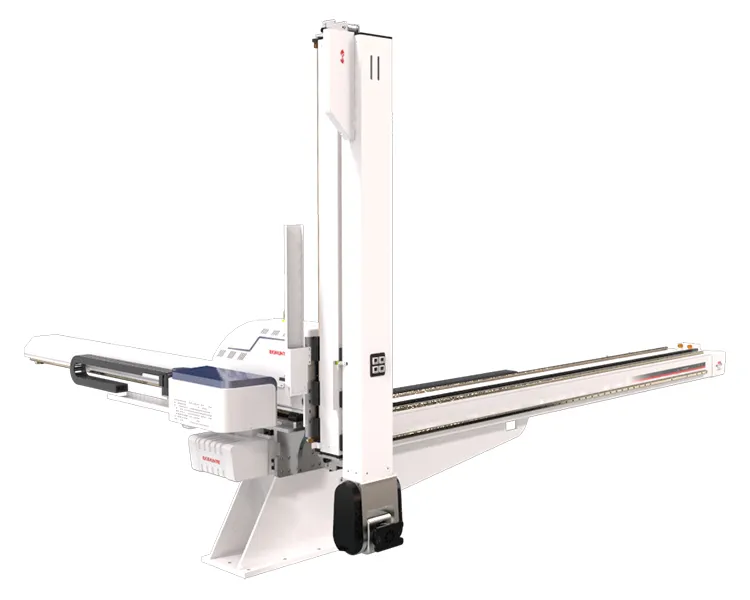

BRTN30WSS5PF/FF is suitable for all types of 2200T- 4000T plastic injection molding machines, five-axis AC servo drive,with AC servo axis on wrist.
Recommended I.M.M (ton): 2200T-4000T
Vertical Stroke (mm): ≤3000
Traverse Stroke (mm): Horizontal arch with a total length of less than 6 meters
Max loading (kg): 60
Weight (kg): Non-standard
BRTN30WSS5PF is suitable for all types of 2200T-4000T plastic injection molding machines,five-axis AC servo drive,with AC servo axis on wrist,A axis rotation 360 degrees,C axis rotation 180 degrees, It can adjust fixture freely,wlth long service life,high accuracy,low failure rate and simple maintenance. It is maInly used for quick Injection or complex angle injection,Especially sultable for long shape products such as automotive products,washing machines and household appliances. FIve-axls driver and controller integrated system: less connecting line,long distance communication, good expansion performance strong anti interference ability,high repeat precision,can simultaneously control multiple axis,simple equipment maintenance,low failure rate.
| Power Source(kVA) | Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 6.11 | 2200T-4000T | AC Servo motor | four suctions two fixtures (adjustable) |
| Traverser Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| Horizontal arch with a total length of less than 6 meters | ≤2500 | ≤3000 | 60 |
| Dry Take Out Time (sec) | Dry Cycle Time (sec) | Air Consumption (NI/cycle) | Weight(kg) |
| Pending | Pending | 47 | Non-standard |
| Repeatability(mm) | |||
| ±0.1 |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Precautions for Storage and Handling Caution:
Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.
1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.
2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.
3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
