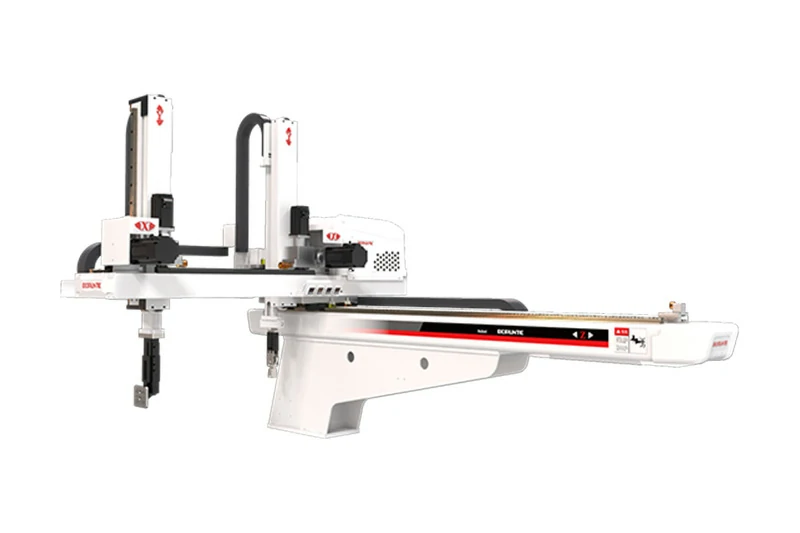

BRTN17WSS5PC/FC series applies to various types of 600T-1300T plastic injection molding machines, five-axis AC servo drive, with AC servo axis on the wrist. The rotation angle of the A-axis: 360° , and the rotation angle of the C-axis:180 ° , which can locate and adjust the angle of the fixture freely Both have a long life, high accuracy, low failure rate, and simple maintenance. It is mainly used for quick injection or complex angle injection, especially suitable for long shape products such as automotive products, washing machines, and household appliances. five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.
MainSpecification:
|
Power Source(kVA) |
Recommendedl.M.M (ton) | Traverse Driven | Model of EOAT |
| 4.23 | 600T-1300T | AC Servo motor |
four suctions two fixtures |
|
Traverser Stroke (mm) |
Crosswise Stroke (mm) | Vertical Stroke (mm) | Max.loading (kg) |
| 2510 | 1415 | 1700 |
20 |
|
Dry Take Out Time (sec) |
Dry Cycle Time (sec) | Air Consumption (NI/cycle) | Weight(kg) |
| 4.45 | 13.32 | 47 |
585 |
|
Repeatability(mm) |
|||
|
±0.1 |
Model representation: W:Telescopic type. S:Product arm. S5:Five-axis driven by AC Servo Motor(Traverse-axis、Vertical-axis+Crosswise-axis).
The above-mentioned cycle time are the results of our company’s internal test standard. In the actual application process of the machine, they will vary according to the actual operation.
|

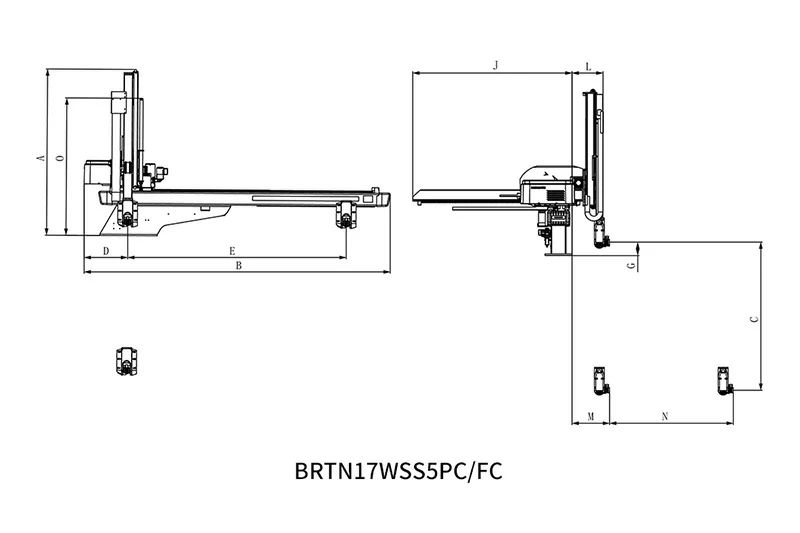

A |
B | C | D | E |
| 1906 | 3512 | 1700 | 500 |
2510 |
|
F |
G | H | I | J |
| / | 155.5 | / | / |
1828 |
|
K |
L | M | N | O |
| / | 354.5 | 430 | 1415 |
1576 |
