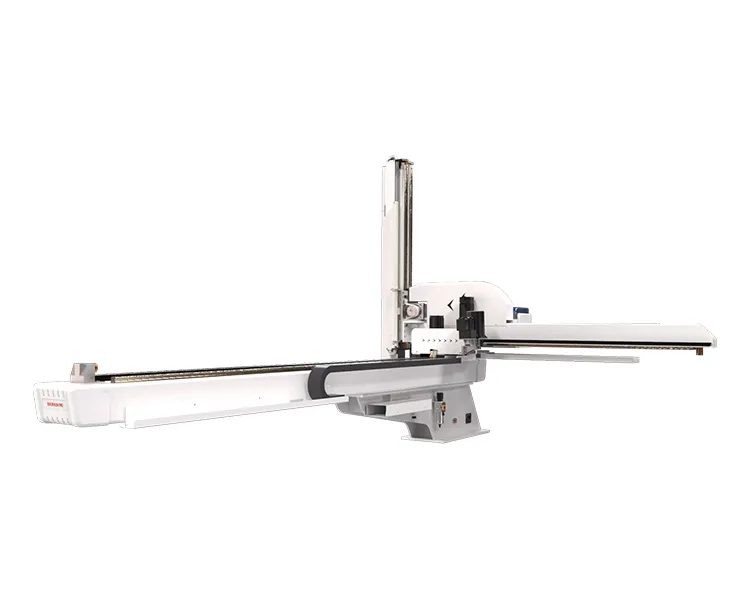

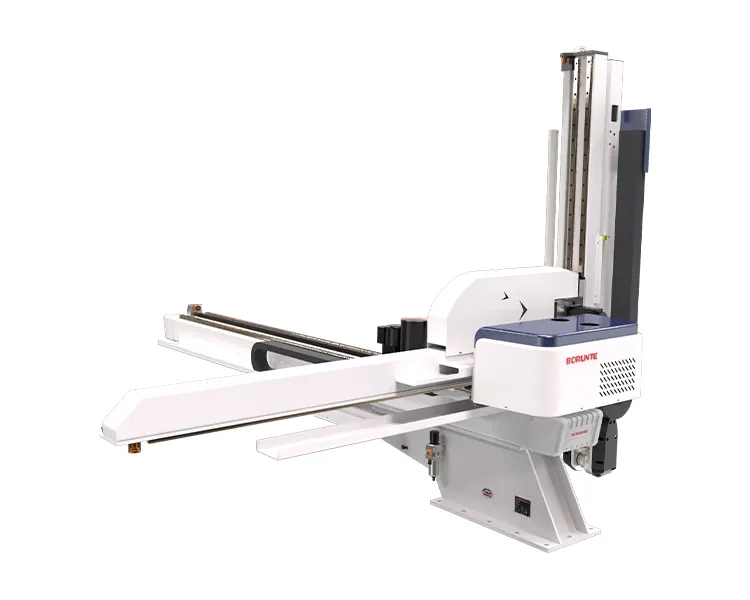

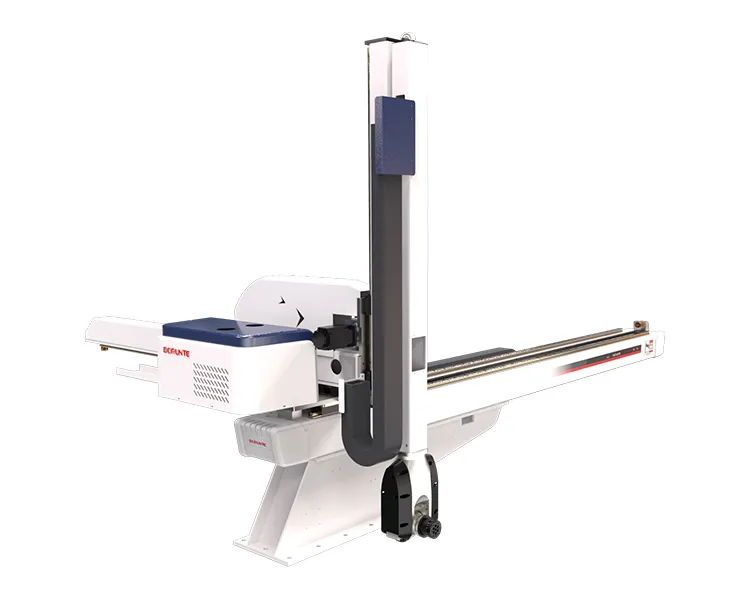

Product Introduction

BRTN17WSS5PC/FC series applies to various types of 600T-1300T plastic injection molding machines, five-axis AC servo drive, with AC servo axis on the wrist. The rotation angle of the A-axis: 360° , and the rotation angle of the C-axis:180 ° , which can locate and adjust the angle of the fixture freely. Both of them have a long life, high accuracy, low failure rate, and simple maintenance. It is mainly used for quick injection or complex angle injection, especially suitable for long shape products such as automotive products, washing machines, and household appliances. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

Basic Parameters

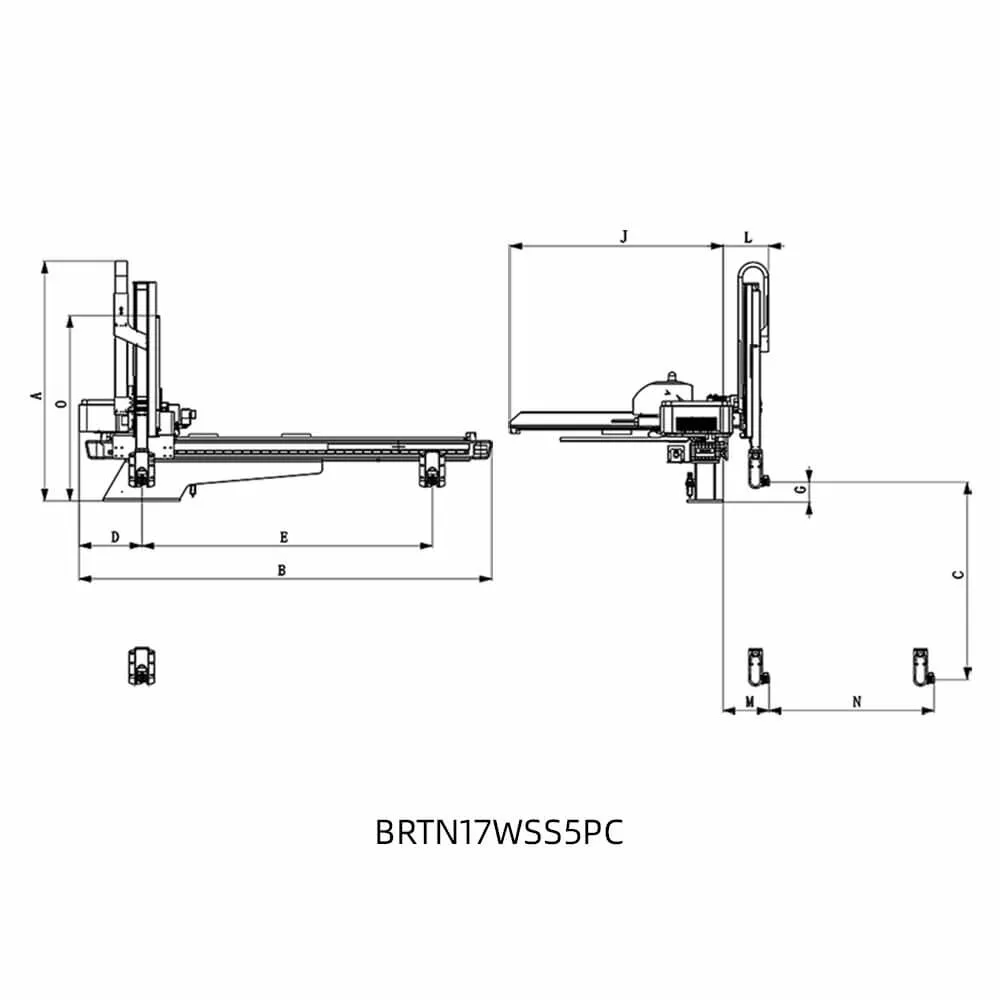

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
