Product Introduction

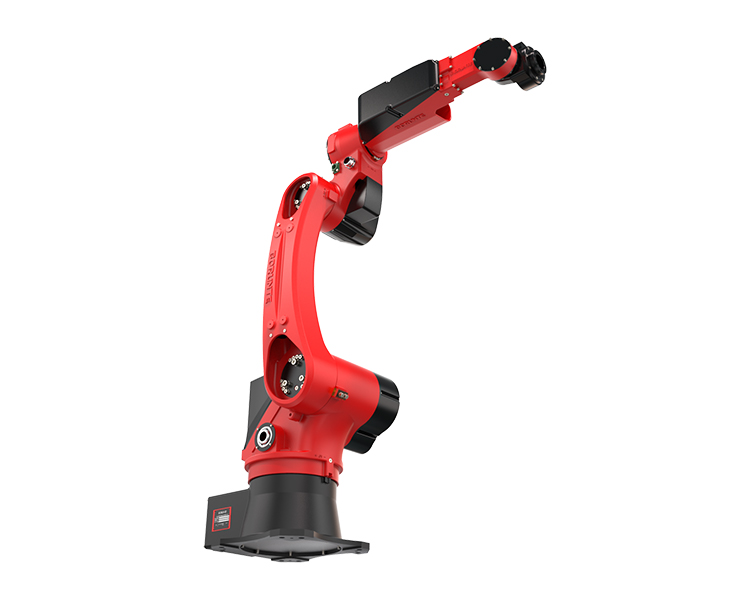

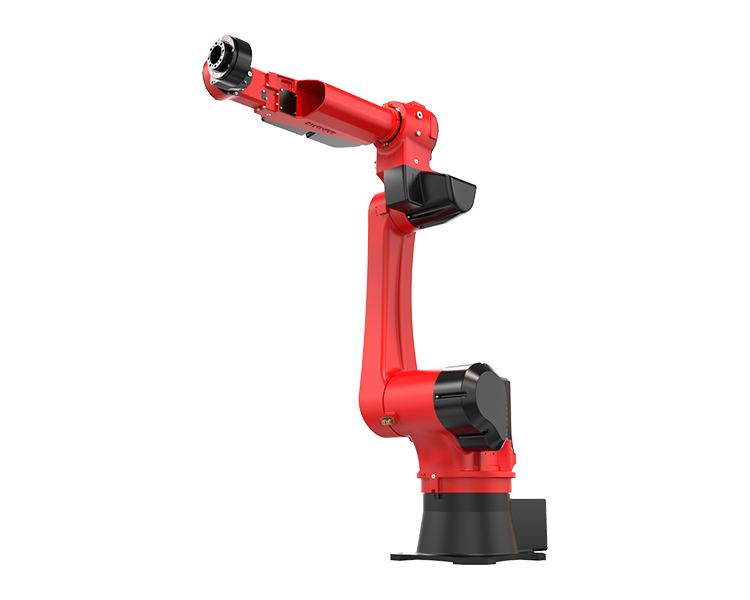

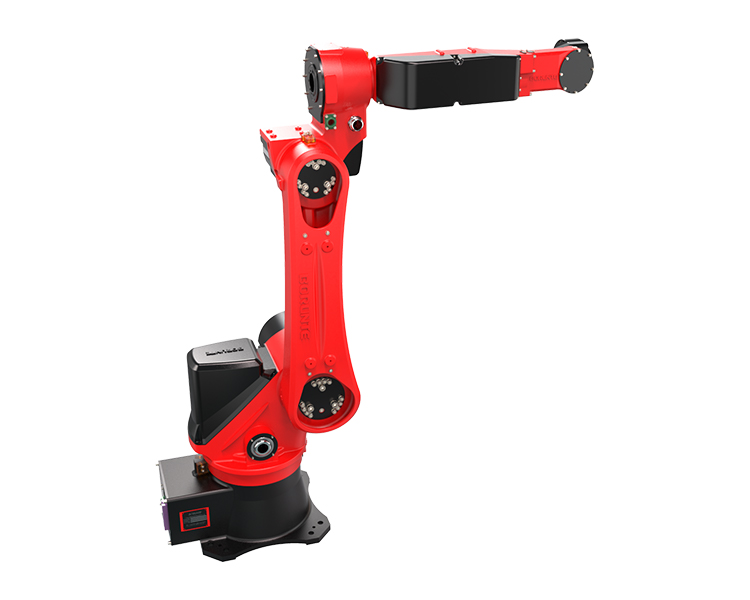

BRTIRWD1606A type robot is a six-axis robot that developed by BORUNTE for welding application industry. The robot is compact in shape, small in size and light in weight. Its maximum load is 6kg and its arm span is 1600mm. Wrist hollow structure, more convenient line, more flexible action. The first, second and third joints are equipped with high-precision reducers, and the fourth, fifth and sixth joints are equipped with high-precision gear structures, so the high-speed joint speed can carry out flexible operations. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.

Basic Parameters

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
