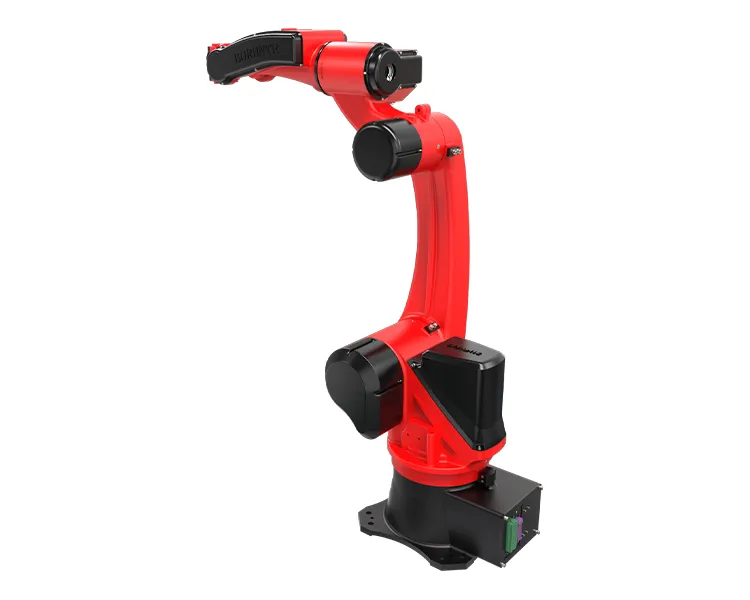

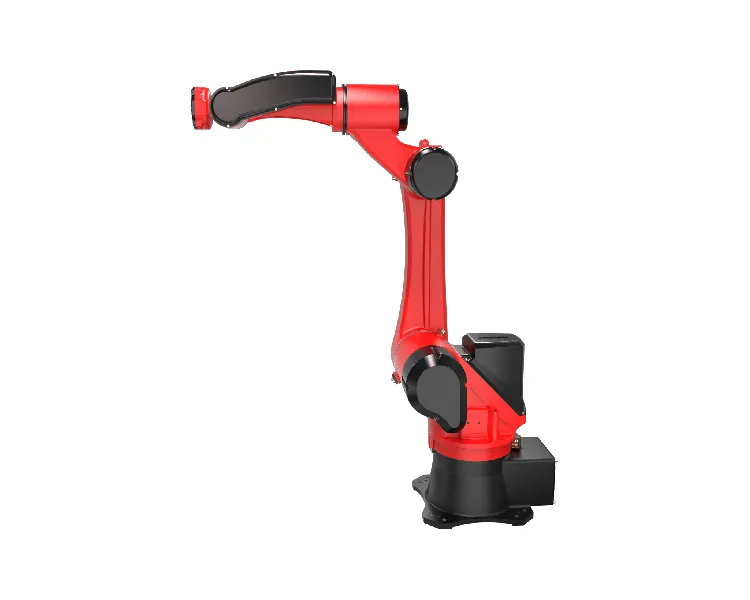

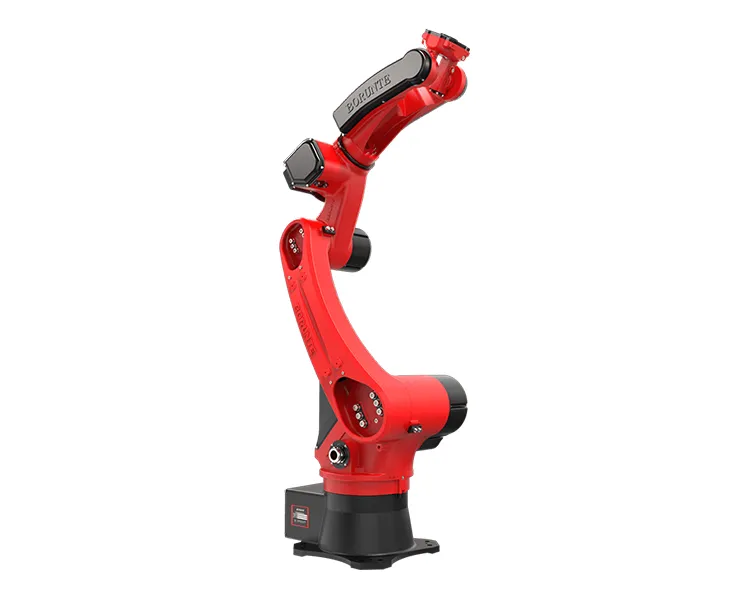

BRTIRWD1506A Six axis robot

BRTIRWD1506A Six axis robot

¥50000

Short Description



BRTIRWD1506A type robot is a six-axis robot developed by BORUNTE for the development of the welding application industry.



Main Specification



Arm Length (mm): 1600



Repeatability (mm): ±0.05



Loading Ability (kg): 6



Power Source (kVA): 4.64

Product Introduction



BRTIRWD1506A type robot is a six-axis robot developed by BORUNTE for the development of the welding application industry. The robot has compact structure, small volume and light weight. The maximum load is 6kg, the maximum arm length is 1600mm. The wrist applies hollow structure with more convenient trace and flexible action. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.





Basic Parameters



Item Range Max.speed
Arm J1 ±165° 163°/s
J2 -100°/+70° 149°/s
J3 ±80° 223°/s
Wrist J4 ±150° 169°/s
J5 ±110° 270°/s
J6 ±360° 398°/s

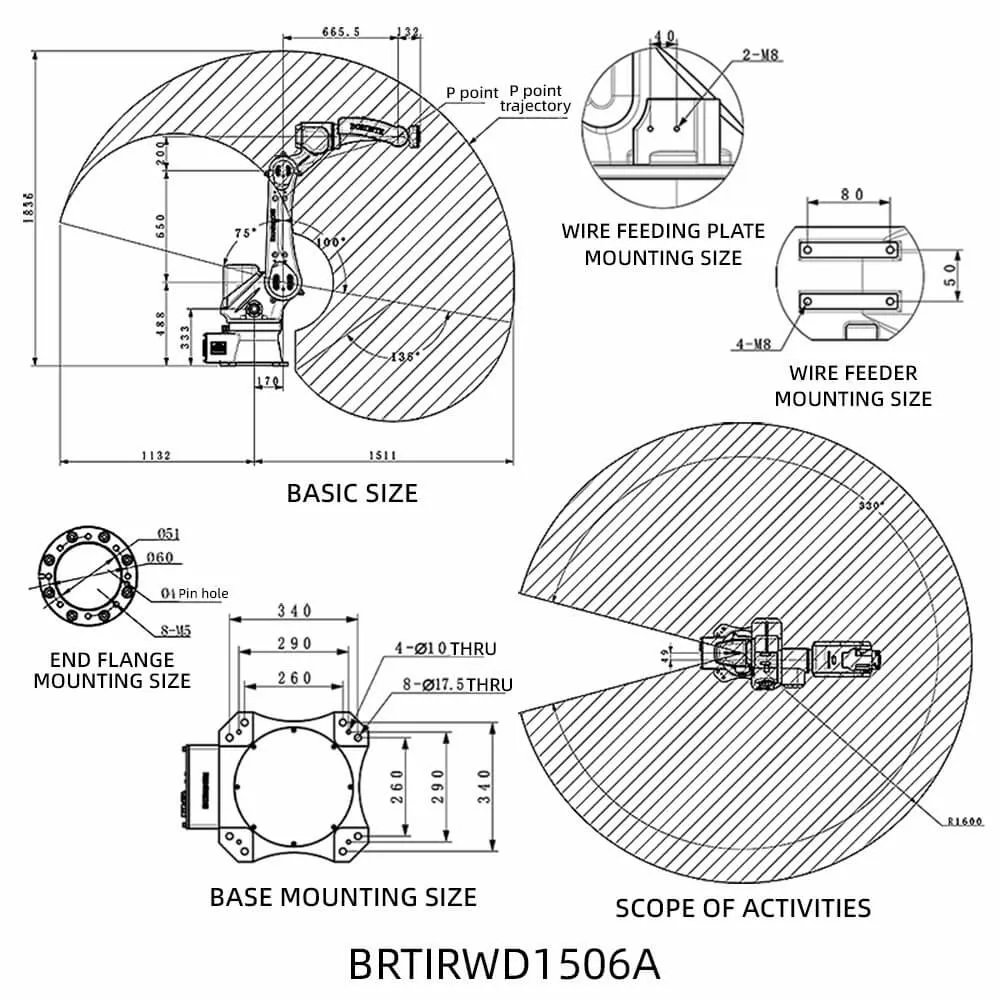

Trajectory chart





No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.



Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.



1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
