¥400000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

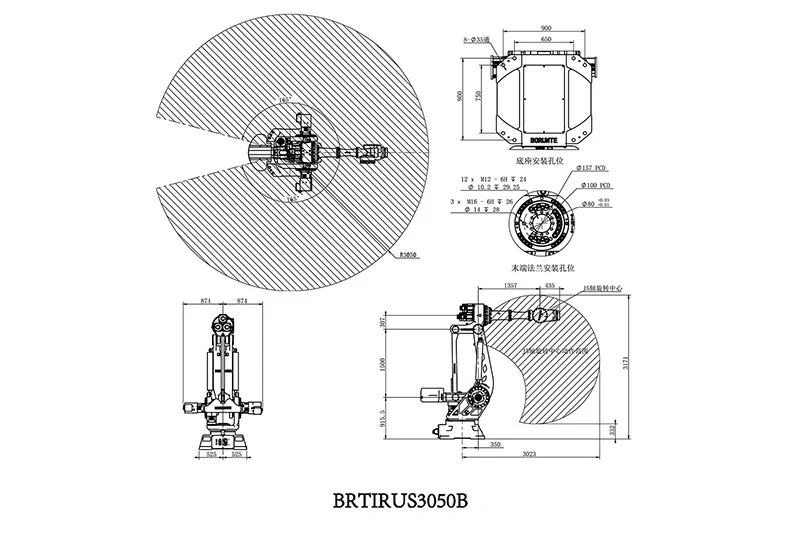

BRTIRUS3050B type robot is a six-axis robot developed by BORUNTE for handling, stacking, loading and unloading and other applications. It has a maximum load of 500kg and a arm span of 3050mm. The shape of the robot is compact, and each joint is equipped with a high-precision reducer. The high-speed joint speed can work flexibly. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.5mm.
MainSpecification:
Arm Length(mm)：3050
Repeatability(mm)：±0.5
Loading Ability(kg)：500
Power Source(kVA)：33.78
Weight(kg)：3200
| Item | Range |
Max.speed |
|
|
Arm |
J1 |
±160° | 65.5°/s |
| J2 | ±55° |
51.4°/s |
|
|
J3 |
-55°/+18° | 51.4°/s | |
| Wrist | J4 | ±360° |
99.9°/s |
|
J5 |
±110° | 104.7°/s | |
| J6 | ±360° |
161.2°/s |
|
If you are interested in buying the robots or inquiring about the robot applications, or you want to cooperate with BORUNTE,feel free to contact us. We will provide the best solution for your needs.
