¥110000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

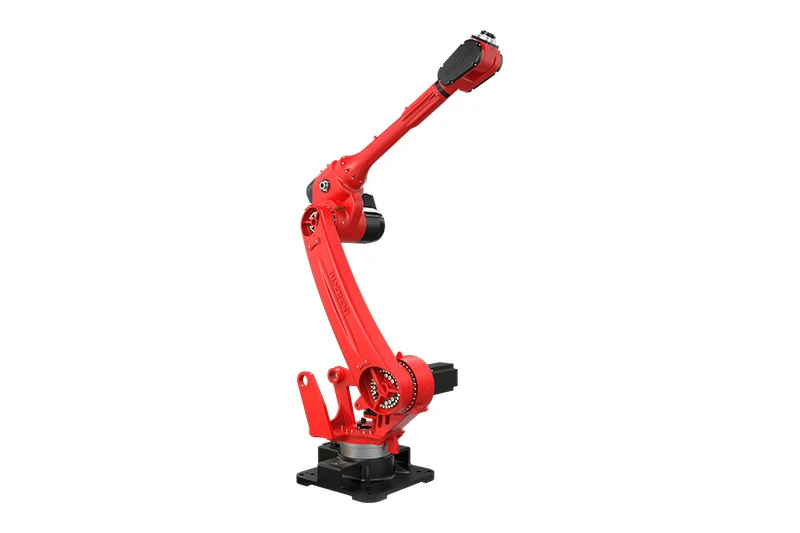

BRTIRUS3030A type robot is a six-axis robot developed by BORUNTE, the robot has a compact shape and structure, each joint is installed with a high precision reducer, high speed joint speed can be flexible operation, can carry out handling, palletizing, assembly, injection molding and other operations, has a flexible installation mode. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.07mm.
MainSpecification:
Arm Length(mm)：3021
Repeatability(mm)：±0.07
Loading Ability(kg)：30
Power Source(kVA)：5.07
Weight(kg)：About783
| Item | Range |
Max.speed |
|
|
Arm |
J1 | ±160° | 89°/s |
| J2 | -105°/+60° |
85°/s |
|
|
J3 |
-75°/+115° | 88°/s | |
| Wrist | J4 | ±180° |
245°/s |
|
J5 |
±120° | 270°/s | |
| J6 | ±360° |
337°/s |
|
