¥150000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

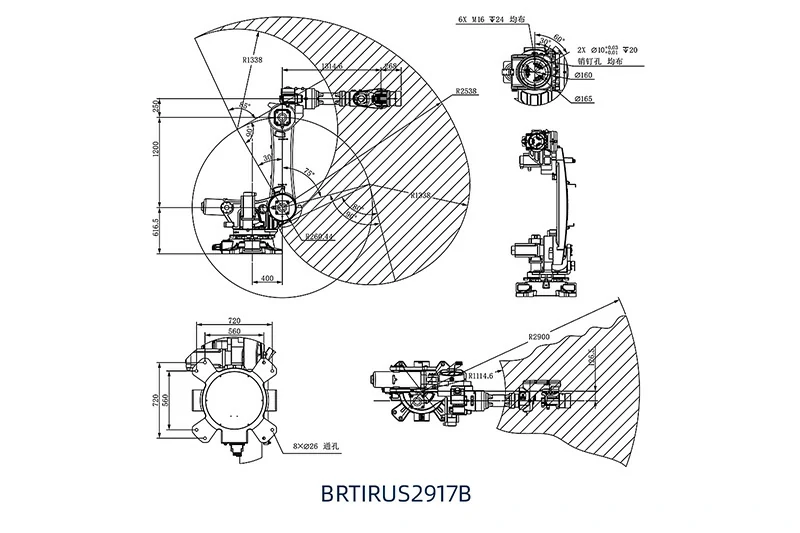

BRTIRUS2917B is a six axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. Its maximum load can reach 170 kg , with a 2900 mm arm span and six degrees of freedom of flexibility, making it capable of handling scenarios such as loading and unloading, assembly, and transportation of injection molded parts on the machine tool. IP code: IP40. Repeated positioning accuracy: ± 0.2mm
MainSpecification:
Arm Length(mm)：2900
Repeatability(mm)：±0.2
Loading Ability(kg)：170
Power Source(kVA)：12.46
Weight(kg)：1190.5
|
Item |
Range |
Max.speed |
|
|
Arm |
J1 | ±160° | 85°/s |
| J2 | -75°/+30° |
70°/s |
|
|
J3 |
-80°/+85° | 70°/s | |
| Wrist | J4 | ±180° |
81°/s |
|
J5 |
±130° | 87°/s | |
| J6 | ±360° |
116°/s |
|
