¥110000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

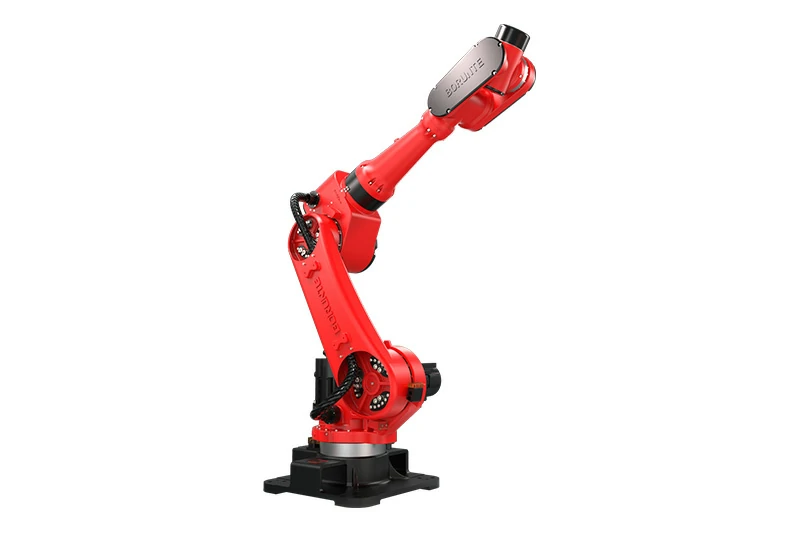

BRTIRUS2550A type robot is a six-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2550mm. The maximum load is 50kg.It has six degrees of flexibility. Suitable for loading and unloading, assembling, molding,stacking etc. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.1mm.
MainSpecification:
Arm Length(mm)：2550
Repeatability(mm)：±0.1
Loading Ability(kg)：50
Power Source(kVA)：8.87
Weight(kg)：About725
|
Item |
Range |
Max.speed |
|
|
Arm |
J1 | ±160° | 84°/S |
| J2 | ±70° |
52°/S |
|
|
J3 |
-75°/+115° | 52°/S | |
| Wrist | J4 | ±180° |
245°/S |
|
J5 |
±125° | 223°/S | |
| J6 | ±360° |
223°/S |
|
