¥150000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

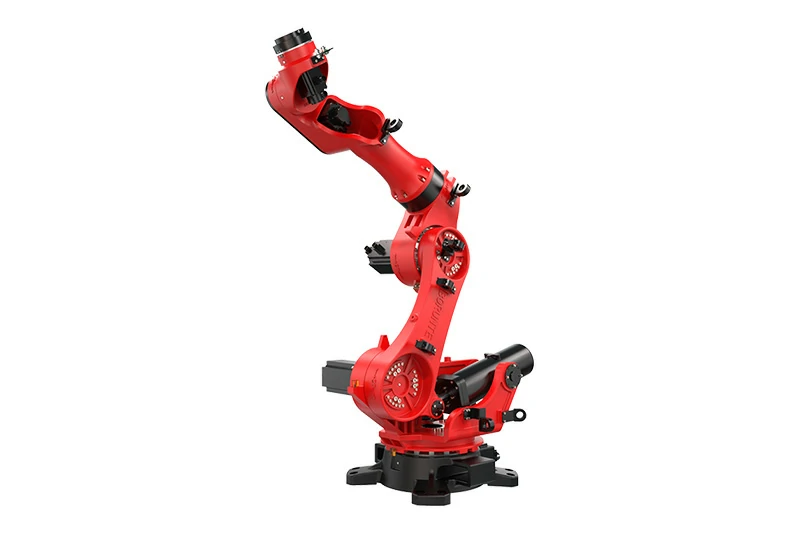

BRTIRUS2520B type robot is a six-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2570mm. The maximum load is 200kg. It’s flexible with multiple degrees of freedom. Suitable for loading and unloading, handling, stacking etc. The protection grade reaches IP40. The repeat positioning accuracy is ±0.2mm.
MainSpecification:
Arm Length(mm)：2570
Repeatability(mm)：±0.2
Loading Ability(kg)：200
Power Source(kVA)：9.58
Weight(kg)：About 1106
| Item | Range |
Max.speed |
|
|
Arm |
J1 |
±160° | 63°/S |
| J2 | -85°/+35° |
52°/S |
|
|
J3 |
-80°/+105° | 52°/S | |
| Wrist | J4 | ±180° |
94°/S |
|
J5 |
±95° | 101°/S | |
| J6 | ±360° |
133°/S |
|
