¥60000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

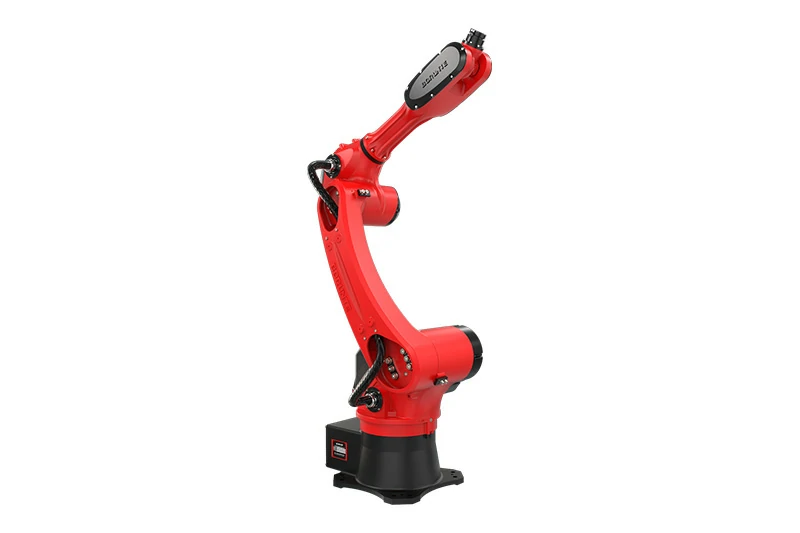

BRTIRUS2110A is a six-axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. The maximum arm length is 2100mm. The maximum load is 10kg. It has six degrees of flexibility.Suitable for welding, loading and unloading, assembling etc. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.05mm.
MainSpecification:
Arm Length(mm)：2100
Repeatability(mm)：±0.05
Loading Ability(kg)：10
Power Source(kVA)：6.48
Weight(kg)：Approx.230
| Item | Range |
Max.speed |
|
|
Arm |
J1 | ±155° | 110°/S |
| J2 | 90°(-140°, adjustable downward)/+65° |
146°/S |
|
|
J3 |
-75°/+110° | 134°/S | |
| Wrist | J4 | ±180° |
273°/S |
|
J5 |
±115° | 300°/S | |
| J6 | ±360° |
336°/S |
|
