¥80000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

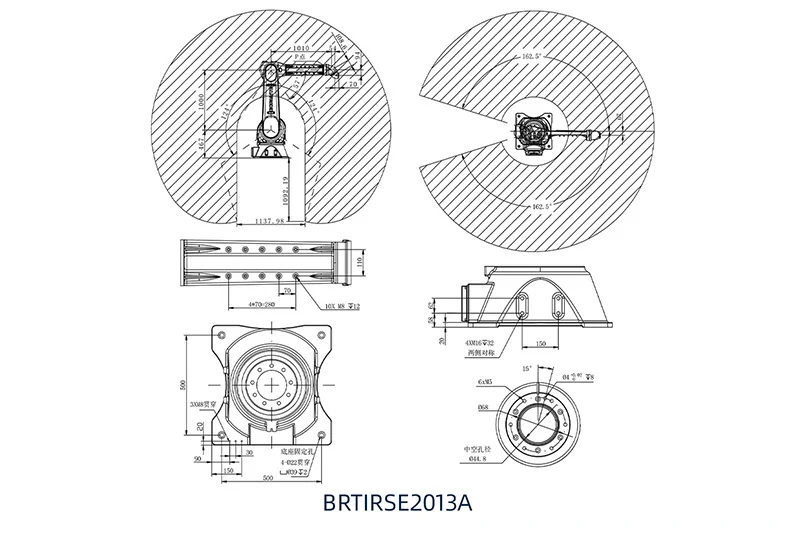

BRTIRSE2013A is a six-axis robot developed by BORUNTE for the spraying application industry. It has an ultra-long arm span of 2000mm and a maximum load of 13kg.It has a compact structure, is highly flexible and technologically advanced, it can be applied to a wide range of spraying industryand accessories handling field. The protection grade reaches IP65. Dust-proof and water-proof. The repeat positioning accuracy is ±0.5mm.
MainSpecification:
Arm Length(mm)：2000
Repeatability(mm)：±0.5
Loading Ability(kg)：13
Power Source(kVA)：6.38
Weight(kg)：385
| Item | Range |
Max.speed |
|
|
Arm |
J1 | ±162.5° | 101.4°/s |
| J2 | ±124° |
105.6°/s |
|
|
J3 |
-57°~+237° | 130.49°/s | |
| Wrist | J4 | ±180° |
368.4°/s |
|
J5 |
±180° | 415.38°/s | |
| J6 | ±360° |
545.45°/s |
|
