BRTIRPZ2080A Four axis robot

BRTIRPZ2080A Four axis robot

¥80000

Short Description



BRTIRPZ2080A is a four axis column palletizing robot developed by BORUNTE ROBOT CO.,LTD. for certain monotonous, frequent, and repetitive long-term operations, or operations in dangerous and harsh environments.



Main Specification



Arm Length (mm): 2000



Repeatability (mm): ±0.15



Loading Ability (kg): 80



Power Source (kVA): 6

Product Introduction

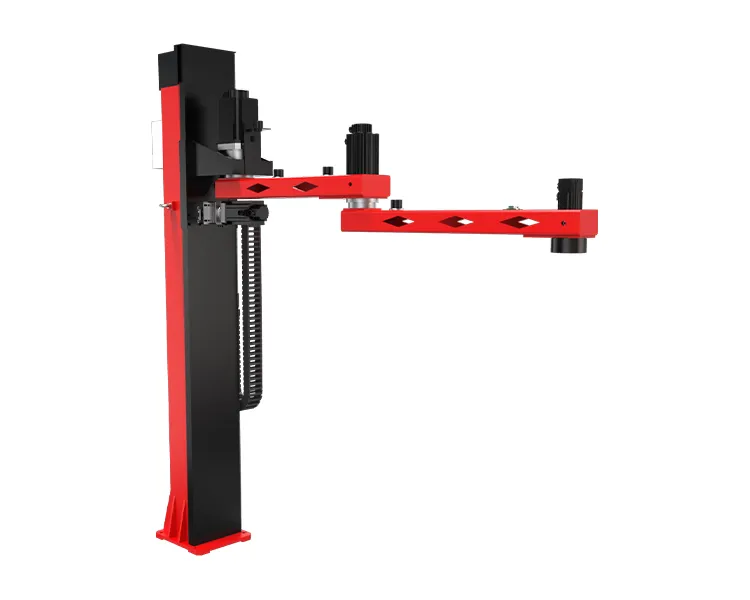

BRTIRPZ2080A is a four axis column palletizing robot developed by BORUNTE ROBOT CO.,LTD. for certain monotonous, frequent, and repetitive long-term operations, or operations in dangerous and harsh environments. It has a 2000mm arm span, a maximum load of 80kg. The flexibility of multiple degrees of freedom can handle scenarios such as loading and unloading, handling, unpacking, and palletizing with ease. The protection grade reaches IP40. The repeat positioning accuracy is ±0.15mm.





Basic Parameters



Item Range Max.speed
Arm J1 ±100° 129.6°/s
J2 1800mm 222mm/s
J3 ±145° 160°/s
Wrist J4 ±360° 296°/s

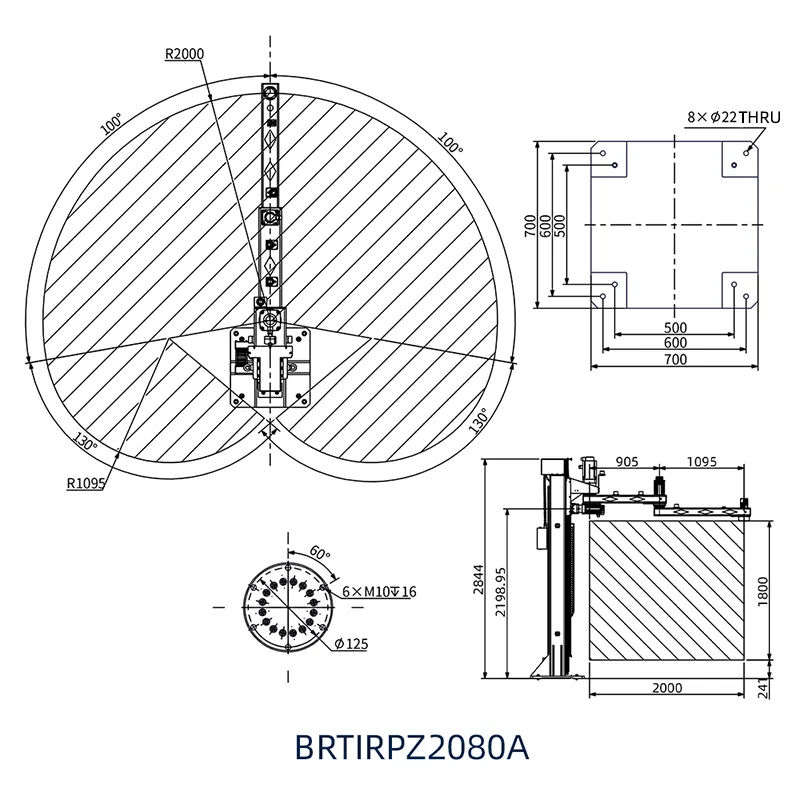

Trajectory chart





No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.



Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.



1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
