BRTIRPL1203A

BRTIRPL1203A

¥60000

Short Description



Main Specification



Arm Length (mm): 1200



Repeatability (mm): ±0.1



Loading Ability (kg): 3



Power Source (kVA): 3.91



Product Introduction

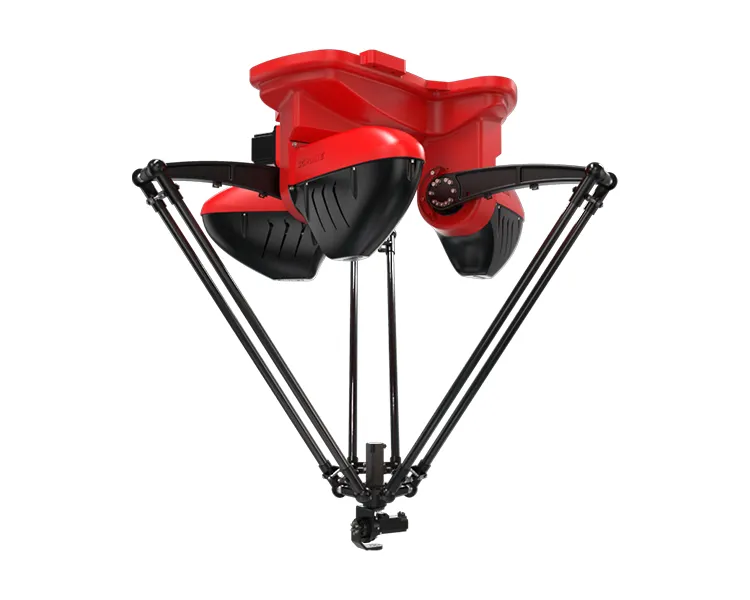

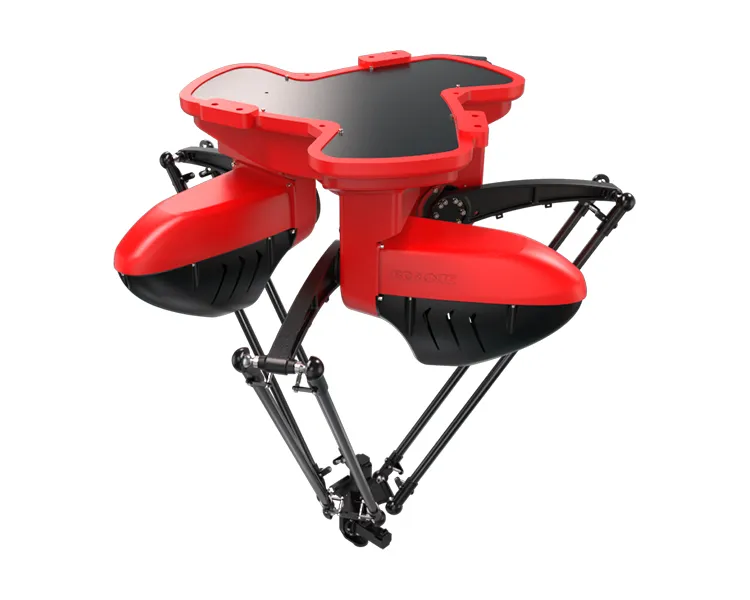

BRTIRPL1203A is a five axis robot developed by BORUNTE for the assembly, sorting and other application scenarios of light and small scattered materials. It can achieve horizontal grasping, flipping and vertical placement, and can be paired with vision. It has a 1200mm arm span and a maximum load of 3kg. The protection grade reaches IP40. The repeat positioning accuracy is ±0.1mm.





Basic Parameters



Item Range Rhythm (time/min)
Master Arm Upper 35° stroke:25/305/25(mm)
Hem 83° 0kg 5kg
Rotation Angle J4 ±180° 143time/min 143time/min
J5 ±90°



Trajectory chart





No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.



Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.



1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
