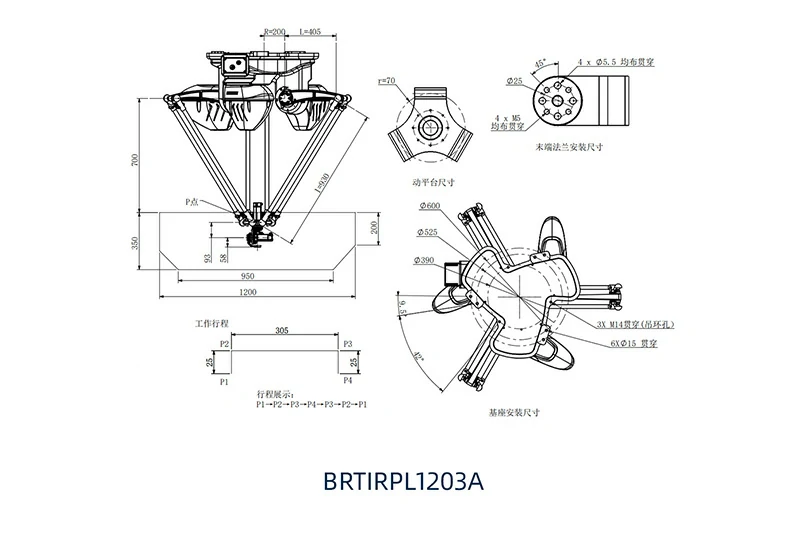

BRTIRPL1203A is a five axis robot developed by BORUNTE for the assembly, sorting and other application scenarios of light and small scattered materials. It can achieve horizontal grasping, flipping and vertical placement, and can be paired with vision. It has a 1200mm arm span and a maximum load of 3kg. The protection grade reaches IP40. The repeat positioning accuracy is ±0.1mm.

MainSpecification:

Arm Length(mm)：1200

Repeatability(mm)：±0.1

Loading Ability(kg)：3

Power Source(kVA)：3.91

Weight(kg)：Approx. 107
