Product Introduction

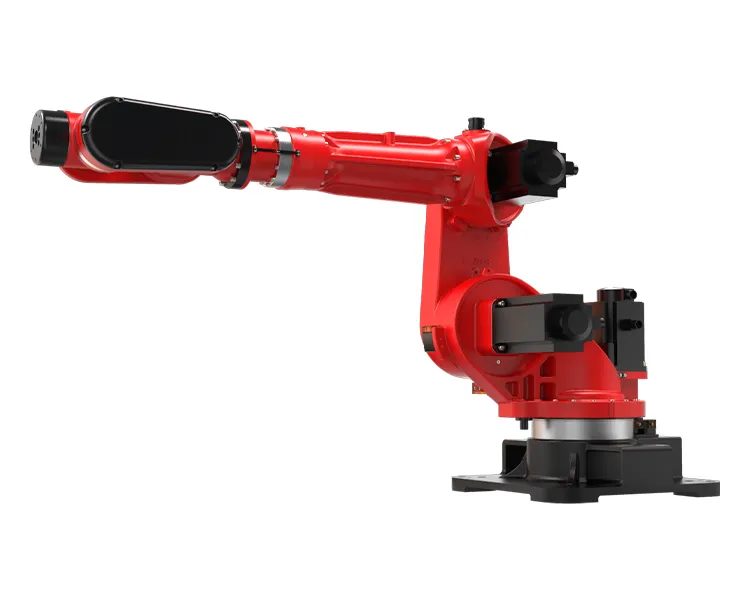

BRTIRBR2260A type robot is a six-axis robot developed by BORUNTE. It has a maximum load of 60kg and a arm span of 2200mm. The shape of the robot is compact, and each joint is equipped with a high-precision reducer. The high-speed joint speed can flexibly carry out sheet metal handling and sheet metal bending. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accuracy is ±0.1mm.

Basic Parameters

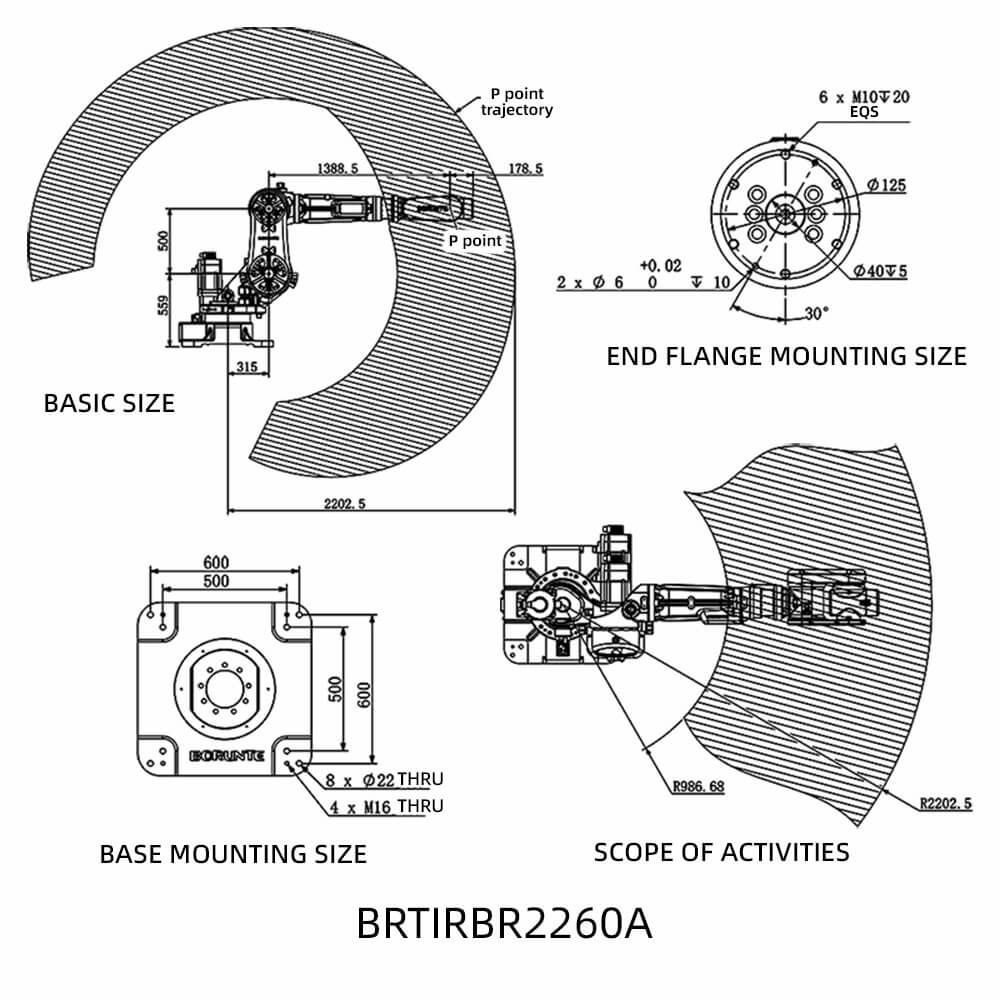

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
