Product Introduction

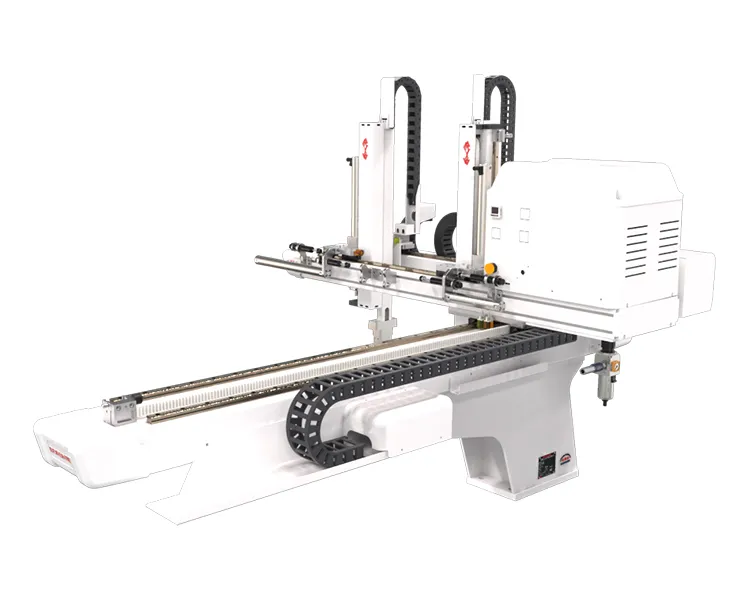

BRTB06WDS1P0/F0 traversing robot arm applies to all types of horizontal injection machine ranges of 30T-120T for take-out products and sprue. The vertical arm is telescopic type, with a product arm and runner’s arm, for two plate or three plate mold products take out. The traverse axis is driven by an AC servo motor. Accurate positioning, fast speed, long life, and low failure rate. Installing the manipulator, the productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Single-axis drive control integrated control system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can control multiple axes at the same time, simple equipment maintenance, and less failure rate.

Basic Parameters

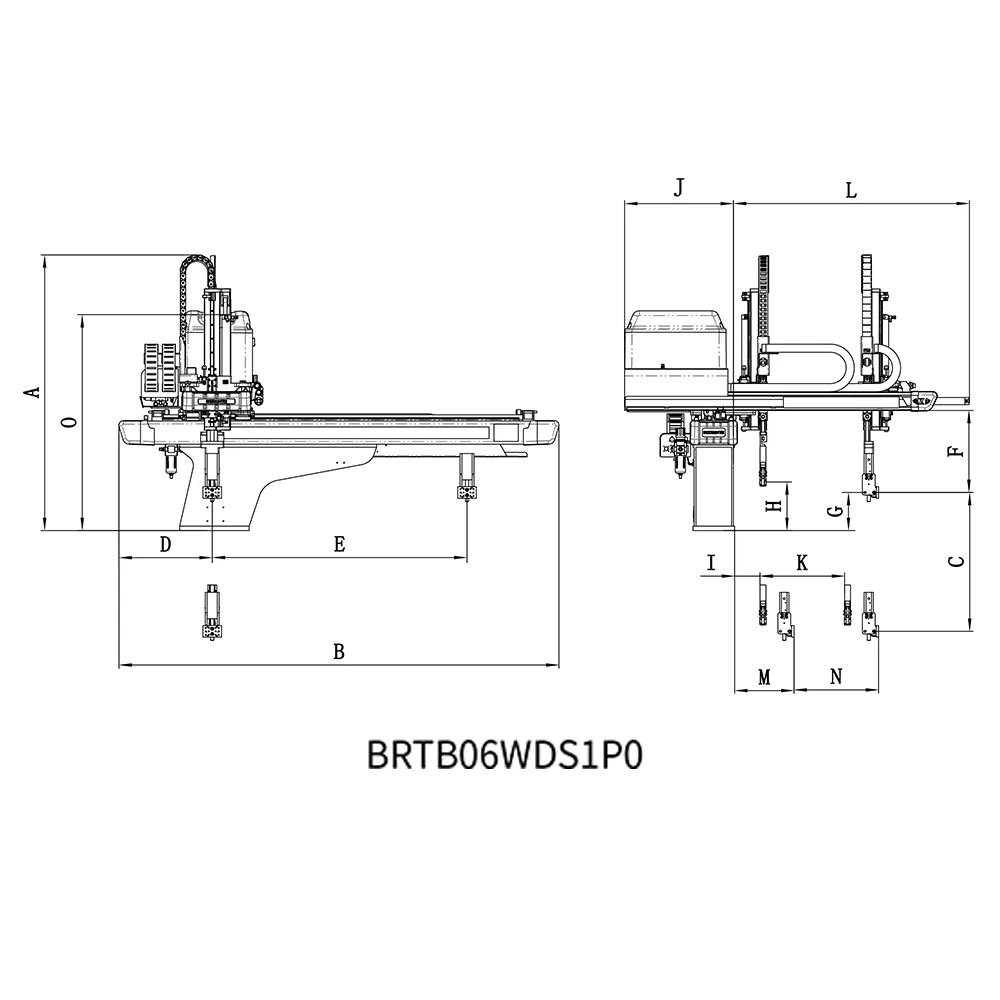

Trajectory chart

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

Precautions for Storage and Handling Caution:

Do not store or place the machine in the following environment, otherwise it may cause fire, electric shock or machine damage.

1. Places exposed to direct sunlight, places where the ambient temperature exceeds the storage temperature conditions, places where the relative humidity exceeds the storage humidity, or places with large temperature differences or condensation.

2. Places close to corrosive gas or flammable gas, places with a lot of dust, salt and metal dust, places where water, oil and medicine drip, and places where vibration or shock can be transmitted to the subject. Please do not grab the cable for transportation, otherwise it will cause damage or failure of the machine.

3. Do not stack too much products on the machine, otherwise it may case machine damage or failure.
