¥60000
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.

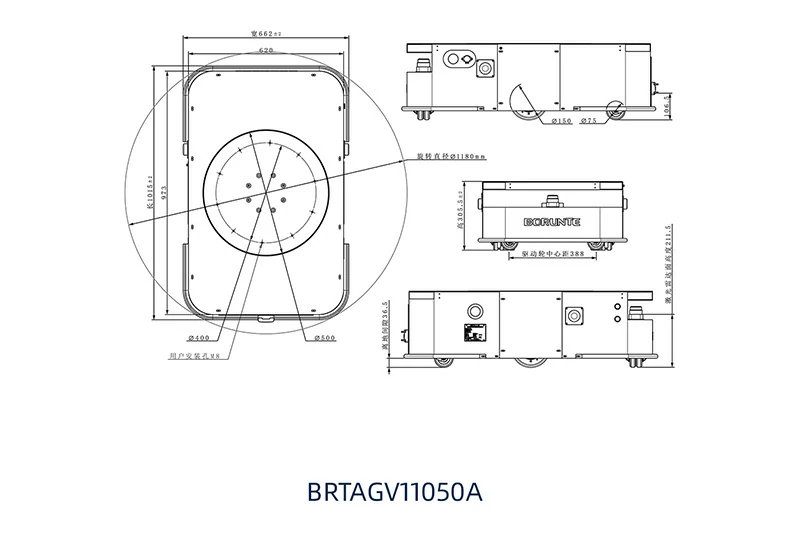

BRTAGV11050A is a lurking jack-up handling robot using laser SLAM, with a load of 500kg. Equipped with 4G card, tablet control, supports autonomous obstacle avoidance, and has shelf recognition and lifting handling functions. Equipped with the BORUNTE AGV door control system to achieve cross floor multi-point transportation tasks, it is with cloud platform monitoring and real-time monitoring of the vehicle status.
MainSpecification:
Repeatability(mm)：Centimeter level
Loading Ability(kg)：500
Power Source(kVA)：0.24
Weight(kg)：200
|
Basic Parameters |
|
| Navigation mode |
Laser SLAM |
|
Driven mode |
Two wheel differential |
| L*W*H |
1015mm*622mm*305.5mm |
|
Turning radius |
590mm |
| Weight |
200kg |
|
Rated load |
500kg |
| Ground clearance |
36.5mm |
|
Lifting plate size |
R=250mm |
| Maximum lifting height |
60mm |
|
Performance Parameters |
|
| Trafficability |
≤5% |
|
Repeat position accuracy |
Centimeter level |
| Cruise Speed |
1m/s（≤1.2m/s） |
|
Battery Parameters |
|
| Capacity |
24A·H |
|
Integrated cruise control |
≥8H |
| Charge method |
Manual/auto |
|
Specific Equipments |
|
| Laser radar |
✓ |
|
QR code reader |
× |
|
Emergency stop button |
✓ |
| Speaker |
✓ |
| Atmosphere lamp |
✓ |
|
Anti-collision strip |
✓ |
|
Functional configuration |
|
|
Automatic charging |
✓ |
| Shelf identification |
✓ |
